Multicast-Signaled VXLAN:

In traditional multicast-signaled VXLAN, VTEPs (VXLAN Tunnel Endpoints) use multicast to flood and learn about remote VTEPs. This method relies on multicast in the underlay network to distribute BUM (Broadcast, Unknown unicast, and Multicast) traffic.

This approach can be resource-intensive due to the need for multicast group management and increased network traffic, especially in large deployments.

EVPN-Signaled VXLAN:

EVPN-signaled VXLAN uses BGP (Border Gateway Protocol) to signal the presence of VTEPs and distribute MAC address information. BGP is used for VTEP autodiscovery and the distribution of endpoint information.

This method is more efficient because it reduces the reliance on multicast, instead using BGP control-plane signaling to handle VTEP discovery and MAC learning, which reduces the overhead on the network and improves scalability.

Correct Statements:

B. An EVPN-signaled VXLAN can perform autodiscovery of VTEPs using BGP:This is correct because EVPN uses BGP for VTEP autodiscovery, making it more efficient and scalable compared to multicast-based methods.

C. An EVPN-signaled VXLAN is less resource-intensive:This is correct because it eliminates the need for multicast flooding in the underlay, instead using BGP for signaling, which is less demanding on network resources.

Incorrect Statements:

A. An EVPN-signaled VXLAN can perform autodiscovery of VTEPs using IS-IS:This is incorrect because EVPN relies on BGP, not IS-IS, for VTEP discovery and signaling.

D. An EVPN-signaled VXLAN features slower and more complete convergence:This is incorrect; EVPN with BGP typically provides faster convergence due to its use of a control plane rather than relying on data plane learning.

Data Center References:

EVPN-VXLAN is widely adopted in modern data center designs due to its scalability, efficiency, and reduced resource consumption compared to multicast-based VXLAN solutions. It leverages the strengths of BGP for control-plane-driven operations, resulting in more efficient and scalable networks.

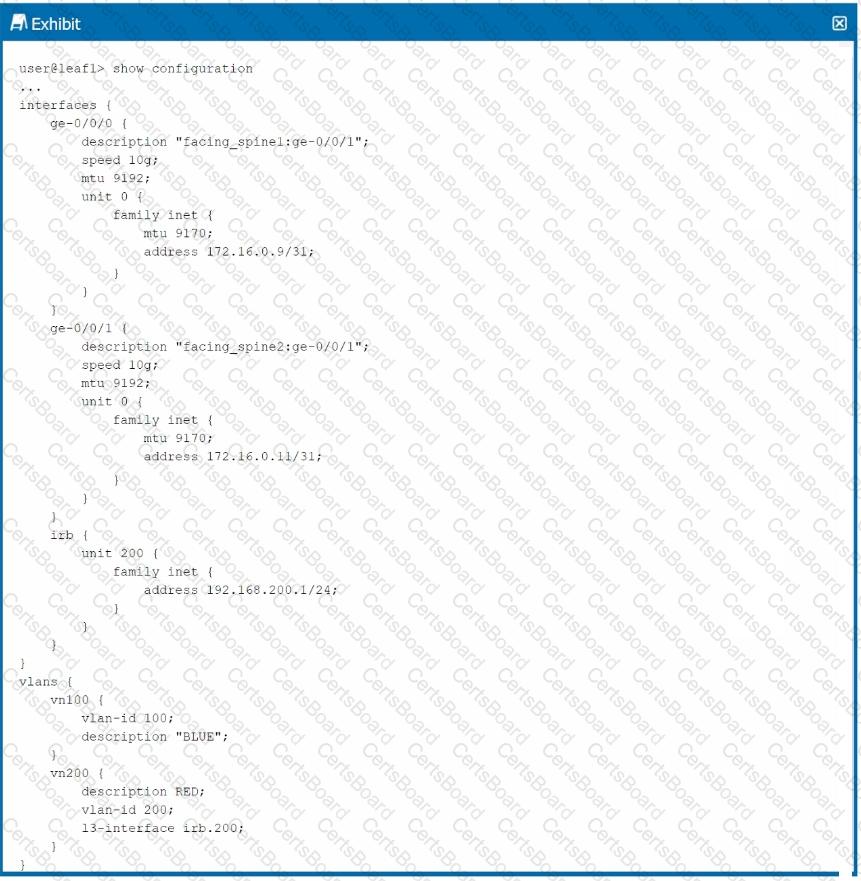

In the provided network configuration, Host A is in VLAN 100 and Host B is in VLAN 200. The issue arises because these two hosts are unable to communicate, which indicates that either the interfaces are not properly linked to their respective VLANs, or there is a missing static route required for inter-VLAN routing.

Step-by-Step Analysis:

VLAN Assignment:

The exhibit shows that irb.200 is correctly associated with VLAN 200 in the configuration. However, there is no corresponding irb.100 for VLAN 100. Without irb.100, the network lacks the logical interface to handle routing for VLAN 100. Thus, adding irb.100 to VLAN 100 is necessary.

Command to solve this:

set vlans vn100 13-interface irb.100

Static Route Configuration:

For inter-VLAN routing to occur, a static route needs to be configured that allows traffic to pass between different subnets (in this case, between VLAN 100 and VLAN 200). The command set routing-options static route 0.0.0.0/0 next-hop 192.168.200.10 would add a static route that directs all traffic from VLAN 100 to the correct gateway (192.168.200.10), which is necessary to route traffic between the two VLANs.

Command to solve this:

set routing-options static route 0.0.0.0/0 next-hop 192.168.200.10

Explanation of Incorrect Options:

Option A (delete vlans vn200 13-interface irb.200): This would remove the logical interface associated with VLAN 200, which is not desired because we need VLAN 200 to remain active and properly routed.

Option B (set interfaces irb unit 100 family inet address 192-168.100.1): This command would incorrectly assign an IP address that does not correspond with the subnet of VLAN 100 (192.168.200.1/24). This could create a misconfiguration, leading to routing issues.

Data Center References:

For a Data Center, proper VLAN management and static routing are crucial for ensuring that different network segments can communicate effectively, especially when dealing with separated subnets or zones like in different VLANs. This aligns with best practices in DCIM (Data Center Infrastructure Management) which stress the importance of proper network configuration to avoid downtime and ensure seamless communication between all critical IT infrastructure components.

Ensuring that the correct interfaces are associated with the correct VLANs and having the proper static routes in place are both essential steps in maintaining a robust and reliable data center network.

This detailed analysis reflects best practices as noted in standard data center design and network configuration guides​.

ERB Architecture in EVPN-VXLAN:

ERB (Edge Routed Bridging) architecture is commonly used in data center networks where routing decisions are made at the network edge (leaf or border devices), while bridging (Layer 2 forwarding) is extended across the fabric. This architecture allows for efficient L3 routing while still enabling L2 services like VLANs to span across multiple locations.

VLAN and VNI Configuration:

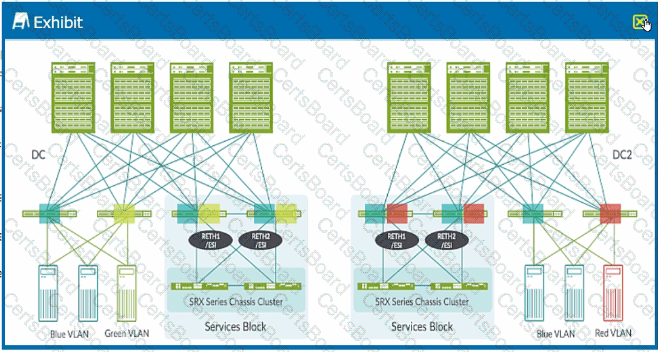

The scenario specifies that a server on the Red VLAN needs to communicate with a server on the Green VLAN. Since these VLANs are in different data centers (DC and DC2), and given the use of EVPN-VXLAN, the communication between these VLANs will require atransit VNI(Virtual Network Identifier). This transit VNI will allow traffic to traverse the VXLAN tunnel across the DCI (Data Center Interconnect).

Interconnect between SRX Series Devices:

The exhibit shows SRX Series Chassis Clusters used as service devices (likely for firewalling or other security services). These devices need to be interconnected between the two data centers to ensure that VLANs can communicate effectively. The Blue VLAN needs to be stretched between DC and DC2 to maintain the same Layer 2 domain across both data centers.

Conclusion:

Option B:Correct—Interconnecting the SRX Series devices will ensure the necessary service chaining, while stretching the Blue VLAN and adding a transit VNI for the Red and Green VLANs will enable the required communication across the data centers.
