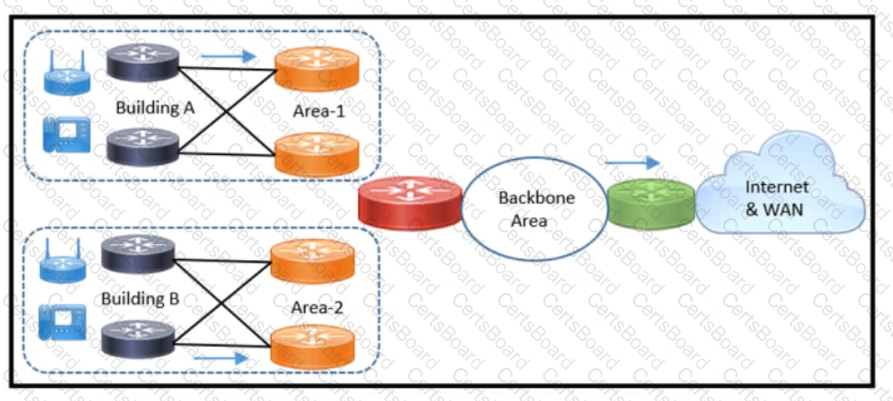

The selected IS-IS design must place the correct routers as Level 1/Level 2 boundary routers so that area failures stay local while traffic can still reach backbone application services. In a hierarchical IS-IS design, Level 1 routers exchange detailed topology only inside their own area. Level 2 routers form the backbone used for interarea connectivity. L1/L2 routers connect the local area to the backbone and advertise reachability between the two levels. Areas 20 and 30 are expected to double in size, and link flaps inside those areas must not impact the backbone. Therefore, the design should keep internal area routers at Level 1 and use only the boundary devices that connect those areas to the backbone as L1/L2. Option A matches that principle by selecting the appropriate boundary routers for interlevel connectivity while avoiding unnecessary L1/L2 adjacencies throughout the topology. The other options either place the wrong routers in Level 2 only or fail to provide a clean transition between local areas and the backbone. Reference topics: IS-IS hierarchy, L1/L2 boundary design, area containment, backbone stability, route leaking.

Rapid PVST+ and VTP address the stated redesign goals. Moving from IEEE 802.1D STP to Rapid PVST+ reduces the impact of topology changes because rapid spanning tree provides faster convergence through proposal/agreement behavior and faster port-role transitions. That improves availability compared with classic STP timers. VTP reduces administrative effort and manual configuration errors by centrally propagating VLAN information across switches in the same VTP domain. It can also support pruning so unused VLAN traffic is not unnecessarily carried across trunks. MST could reduce spanning-tree instance count, but the question emphasizes reducing topology-change impact and reducing manual VLAN configuration work; Rapid PVST+ plus VTP addresses both directly. Storm control helps limit broadcast and multicast traffic but does not solve STP convergence or VLAN administration. Dynamic Trunking Protocol negotiates trunk state; it does not propagate VLAN information and is often avoided in deterministic campus designs. In production, VTP should be used carefully with version control, domain/password discipline, and change governance because incorrect VTP configuration can have broad impact. Reference topics: Rapid PVST+, STP convergence, VTP, VLAN pruning, campus Layer 2 operations.

Contracting an internet connection and deploying DMVPN is the most practical solution when the enterprise needs a fast, affordable, and reliable backup for a single MPLS provider. DMVPN can use broadband internet transport to build encrypted GRE/IPsec tunnels between sites, providing a backup WAN path without waiting for another private MPLS provider circuit. It supports dynamic routing and can be deployed incrementally, which makes it suitable after a recent outage when time and cost matter. BFD echo mode toward a provider PE can improve failure detection, but it does not create an alternate transport if the only MPLS provider has an outage. Adding a WAN router and a floating static route also fails unless another path exists. Contracting a second MPLS provider and deploying GETVPN may be robust, but it is slower and more expensive than the requested quick and affordable backup. Reference topics: DMVPN backup WAN, MPLS resiliency, internet VPN, IPsec, branch availability, rapid WAN deployment.
