TASK 7

???? Objective:

Attach the VHDX file c:\vhds\Disk1.vhdx to VM1 so it can dynamically expand when VM1 is running.

Step-by-Step Guide

✅ Step 1: Verify the VHDX File Type

Dynamic expansion means the virtual disk type should be dynamic (not fixed).

Let’s verify the disk type of Disk1.vhdx:

powershell

Copy

Get-VHD -Path "c:\vhds\Disk1.vhdx"

In the output, ensure that VhdType shows Dynamic.

If it’s not dynamic, convert it:

powershell

Copy

Convert-VHD -Path "c:\vhds\Disk1.vhdx" -DestinationPath "c:\vhds\Disk1_dynamic.vhdx" -VHDType Dynamic

✅ Step 2: Attach the VHDX to VM1

Use PowerShell to add the disk to VM1:

powershell

Copy

Add-VMHardDiskDrive -VMName "VM1" -Path "c:\vhds\Disk1.vhdx"

✅ Or do it via Hyper-V Manager:

Open Hyper-V Manager.

Select VM1 and go to Settings.

In the left pane, select SCSI Controller (recommended for hot-add).

Click Add Hard Drive.

Browse and select c:\vhds\Disk1.vhdx.

Click Apply and OK.

✅ Step 3: Verify Hot-Add Support (Optional)

If VM1 is running Windows Server 2012 or later and uses a SCSI Controller, the VHDX can be added without shutting down the VM.

✅ Step 4: Verify the Disk in the VM

Inside VM1, open Disk Management (diskmgmt.msc).

The newly attached disk should appear as unallocated.

Initialize it, create a volume, and format if needed.

Summary

VHDX file type: Must be dynamic for expanding.

Hot-adding supported if attached via SCSI Controller and OS supports it.

Now Disk1.vhdx is attached to VM1 and can expand dynamically.

The Azure File Sync design guidance in Administering Windows Server Hybrid Core Infrastructure explains that a sync group defines one sync topology and is anchored by exactly one cloud endpoint (an Azure file share). The material states: “Each sync group contains a single cloud endpoint… Additional Azure file shares must be placed in separate sync groups.” Consequently, after Group1 uses share1 as its cloud endpoint, share2 cannot be added to the same sync group, which makes the first statement No.

For server endpoints, the guide notes: “A server endpoint represents a specific path on a registered Windows Server… A server can host multiple server endpoints, including in the same sync group, provided paths don’t overlap (no parent/child or identical paths).” Because D:\Folder1 is already in Group1, adding E:\Folder2 from the same Server1 is supported and non-overlapping, so the second statement is Yes.

Finally, multi-server synchronization is a core capability: “Multiple servers can be added as server endpoints to the same sync group to enable branch-to-branch and server-to-cloud sync; contents are merged in the Azure file share namespace.” Therefore, adding D:\Data from Server2 as another server endpoint in Group1 is fully supported, making the third statement Yes.

These rules satisfy the scenario: one cloud endpoint per sync group, multiple non-overlapping server endpoints (including multiple from the same server), and multi-server participation in the same group.

To map \\dd.contoso.com\instal1 as drive H for all users using Group Policy Preferences and ensure that the new drive mapping takes precedence over any existing mappings, follow these steps:

Step 1: Open Group Policy Management Console Open the Group Policy Management Console (GPMC) on a machine that has administrative privileges over the domain.

Step 2: Create or Edit a GPO Create a new Group Policy Object (GPO) or edit an existing one that applies to the users who need the drive mapping.

Step 3: Navigate to Drive Mappings In the GPO Editor, navigate to:

User Configuration -> Preferences -> Windows Settings -> Drive Maps

Step 4: New Drive Mapping Right-click on Drive Maps and select New -> Mapped Drive.

Step 5: Configure Drive Mapping In the New Drive Properties window, configure the following settings:

Action: Select Replace. This action will overwrite any existing mappings with the same drive letter.

Location: Enter the UNC path \\dd.contoso.com\instal1.

Drive Letter: Choose H: from the drop-down menu.

Reconnect: Check this option if you want the drive mapping to persist across logon sessions.

Label As: Optionally, provide a label for the drive mapping.

Hide/Show this drive: Set according to your preference.

Hide/Show all drives: Set according to your preference.

Step 6: Common Tab Go to the Common tab and configure the following:

Run in logged-on user’s security context (user policy option): Check this option.

Item-level targeting: Click on Targeting and set up any specific criteria if needed.

Step 7: Apply the GPO Click Apply and then OK to save the drive mapping configuration.

Step 8: Link the GPO Link the GPO to an Organizational Unit (OU) or domain that contains the users who should receive the drive mapping.

Step 9: Update Group Policy Instruct users to log off and log back on, or use the gpupdate /force command to refresh Group Policy on their computers.

TASK 6

???? Objective:

Enable nested virtualization for a VM (VM1) on SRV1.

Step-by-Step Guide: Enable Nested Virtualization

✅ Step 1: Verify Requirements

Nested virtualization requires:

SRV1 to have a processor that supports Intel VT-x or AMD-V.

Hyper-V role installed on SRV1.

VM1 must be turned off.

✅ Step 2: Open PowerShell on SRV1

Log in to SRV1 with an account that has administrative privileges.

Open PowerShell as Administrator.

✅ Step 3: Enable Nested Virtualization

Run the following command:

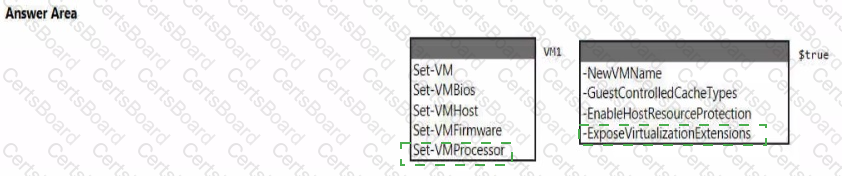

Set-VMProcessor -VMName "VM1" -ExposeVirtualizationExtensions $true

✅ Step 4: Verify Nested Virtualization

To confirm the change, run:

Get-VMProcessor -VMName "VM1" | Format-List ExposeVirtualizationExtensions

✅ The output should show:

ExposeVirtualizationExtensions : True

✅ Step 5: Configure Network Adapter (Optional for Nested VMs)

Nested virtualization requires MAC address spoofing for the VM network adapter.

Run:

Set-VMNetworkAdapter -VMName "VM1" -MacAddressSpoofing On

✅ Step 6: Start the VM

Use PowerShell:

Start-VM -Name "VM1"

Or start the VM in Hyper-V Manager.

Additional Notes

Nested virtualization allows you to run Hyper-V within a VM.

Useful for lab/test environments (e.g., running nested Hyper-V hosts in a VM).

To configure the domain to support the creation of gMSAs, you need to perform the following steps:

On a domain controller or a computer that has the Remote Server Administration Tools (RSAT) installed, open PowerShell as an administrator and run the following command to install the Active Directory module:

Install-WindowsFeature -Name RSAT-AD-PowerShell

Run the following command to create a Key Distribution Service (KDS) root key, which is required for generating passwords for gMSAs. You only need to do this once per domain:

Add-KdsRootKey -EffectiveImmediately

Wait for at least 10 hours for the KDS root key to replicate to all domain controllers in the domain. Alternatively, you can use the -EffectiveTime parameter to specify a past date and time for the KDS root key, but this is not recommended for security reasons. For more information, see Add-KdsRootKey.

After the KDS root key is replicated, you can create and configure gMSAs using the New-ADServiceAccount and Set-ADServiceAccount cmdlets. For more information, see Create a gMSA and Configure a gMSA.

TASK 3

???? Objective:

Create a user named Admin1 in contoso.com.

Admin1 must be able to back up and restore files on SRV1.

Follow the principle of least privilege.

Step-by-Step Guide

✅ Step 1: Create the User Account

Log in to a Domain Controller (e.g., DC1) with appropriate admin rights.

Open Active Directory Users and Computers (dsa.msc).

In the contoso.com domain:

Right-click the Users container or another OU where you want to create the account.

Select New > User.

Enter the following:

First name: Admin1

User logon name: Admin1

Click Next and set a password (ensure it meets the domain’s password policy).

Configure password options (e.g., User must change password at next logon, if required).

Click Finish.

✅ Step 2: Grant Backup and Restore Rights on SRV1

By default, Backup Operators have the ability to back up and restore files (without giving full admin rights).

Log in to SRV1 (the target server).

Open Computer Management (compmgmt.msc).

In the left pane, expand:

System Tools > Local Users and Groups > Groups.

Find and double-click the Backup Operators group.

Click Add.

In the Select Users, Computers, Service Accounts, or Groups window:

Type Admin1.

Click Check Names to resolve the user.

Click OK to add Admin1 to the group.

Click OK again to close the Backup Operators group properties.

✅ Step 3: Verify Access

Log in as Admin1 on SRV1 and test performing backup and restore operations using tools like Windows Server Backup.

Since Backup Operators can back up and restore data but do not have full administrative privileges, this follows the least privilege principle.

✅ Additional Notes

If you prefer using PowerShell, you can add the user to the group like this on SRV1:

Add-LocalGroupMember -Group "Backup Operators" -Member "contoso\Admin1"

To create a GPO named GPO1 that only applies to a group named MemberServers, you can follow these steps:

On a domain controller or a computer that has the Remote Server Administration Tools (RSAT) installed, open Group Policy Management from the Administrative Tools menu or by typing gpmc.msc in the Run box.

In the left pane, expand your domain and right-click on Group Policy Objects. Select New to create a new GPO.

In the New GPO dialog box, enter GPO1 as the Name of the new GPO and click OK. You can also optionally select a source GPO to copy the settings from.

Right-click on the new GPO and select Edit to open the Group Policy Management Editor. Here, you can configure the settings that you want to apply to the group under the Computer Configuration and User Configuration nodes. For more information on how to edit a GPO, see Edit a Group Policy Object.

Close the Group Policy Management Editor and return to the Group Policy Management console. Right-click on the new GPO and select Scope. Here, you can specify the scope of management for the GPO, such as the links, security filtering, and WMI filtering.

Under the Security Filtering section, click on Authenticated Users and then click on Remove. This will remove the default permission granted to all authenticated users and computers to apply the GPO.

Click on Add and then type the name of the group that you want to apply the GPO to, such as MemberServers. Click OK to add the group to the security filter. You can also click on Advanced to browse the list of groups available in the domain.

Optionally, you can also configure the WMI Filtering section to further filter the GPO based on the Windows Management Instrumentation (WMI) queries. For more information on how to use WMI filtering, see Filter the scope of a GPO by using WMI filters.

To link the GPO to an organizational unit (OU) or a domain, right-click on the OU or the domain in the left pane and select Link an Existing GPO. Select the GPO that you created, such as GPO1, and click OK. You can also change the order of preference by using the Move Up and Move Down buttons.

Wait for the changes to replicate to other domain controllers. You can also force the update of the GPO by using the gpupdate /force command on the domain controller or the client computers. For more information on how to update a GPO, see Update a Group Policy Object.

Now, you have created a GPO named GPO1 that only applies to a group named MemberServers. You can verify the GPO application by using the gpresult /r command on a member server and checking the Applied Group Policy Objects entry. You can also use the Group Policy Results wizard in the Group Policy Management console to generate a report of the GPO application for a specific computer or user. For more information on how to use the Group Policy Results wizard, see Use the Group Policy Results Wizard.

In Just Enough Administration (JEA), you restrict what remote users can do by publishing a PowerShell session endpoint that references a session configuration file and one or more role capability files. The AZ-800 “Administering Windows Server Hybrid Core Infrastructure” materials explain that a JEA deployment follows this order: (1) create role capability files (.psrc) in a module’s RoleCapabilities folder to enumerate allowed cmdlets, functions, and parameters; (2) author a session configuration file (.pssc)—typically with New-PSSessionConfigurationFile—that maps users or groups to the role capabilities; and (3) register the endpoint with Register-PSSessionConfiguration, supplying the .pssc path and a Name for the endpoint. Only after registration can helpdesk users connect to the constrained endpoint.

Critically, among the listed cmdlets, Register-PSSessionConfiguration is the one that accepts -Name and -Path to a .pssc file, which matches the prompt (-Path .\hypervJeaConfig __ -Name 'hypervJeaHelpDesk' -Force). Enter-PSSession is for connecting to an already published endpoint, and New-PSSessionConfigurationFile creates the .pssc but does not publish it. Likewise, file types .ps1 (script), .psm1 (module), and .psrc (role capability) are not valid for the -Path parameter when registering an endpoint. Therefore, the correct completion is:

Register-PSSessionConfiguration -Path .\hypervJeaConfig.pssc -Name 'hypervJeaHelpDesk' -Force.

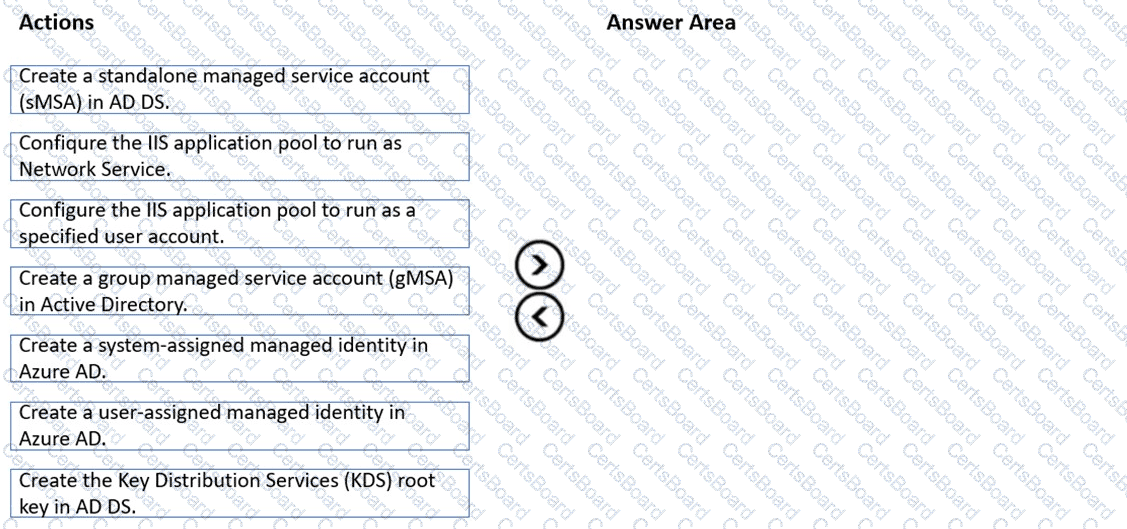

The AZ-800 materials explain that group Managed Service Accounts (gMSAs) rely on the KDS (Key Distribution Service) to generate and rotate passwords. Therefore, in a new forest you must first create a KDS root key:

“Before creating your first gMSA, run Add-KdsRootKey to seed the KDS” (the key may need propagation time).Next, you create the gMSA and scope which computers can retrieve its managed password:

Use New-ADServiceAccount with -PrincipalsAllowedToRetrieveManagedPassword set to the security group that contains the NLB nodes (here, ITFarmHosts), and specify the DNS host name as needed for the service (e.g., NLBCluster.contoso.com).Finally, on each cluster node you install (register) the gMSA locally so services can run under it:

Run Install-ADServiceAccount on each server in ITFarmHosts.

Cmdlets like Add-ADComputerServiceAccount are used for standalone MSAs (sMSAs), not gMSAs, and Set-ADForestConfiguration isn’t required. This sequence enables the NLB service on all five nodes to authenticate using the gMSA with automatic password management.
