To map \\dd.contoso.com\instal1 as drive H for all users using Group Policy Preferences and ensure that the new drive mapping takes precedence over any existing mappings, follow these steps:

Step 1: Open Group Policy Management Console Open the Group Policy Management Console (GPMC) on a machine that has administrative privileges over the domain.

Step 2: Create or Edit a GPO Create a new Group Policy Object (GPO) or edit an existing one that applies to the users who need the drive mapping.

Step 3: Navigate to Drive Mappings In the GPO Editor, navigate to:

User Configuration -> Preferences -> Windows Settings -> Drive Maps

Step 4: New Drive Mapping Right-click on Drive Maps and select New -> Mapped Drive.

Step 5: Configure Drive Mapping In the New Drive Properties window, configure the following settings:

Action: Select Replace. This action will overwrite any existing mappings with the same drive letter.

Location: Enter the UNC path \\dd.contoso.com\instal1.

Drive Letter: Choose H: from the drop-down menu.

Reconnect: Check this option if you want the drive mapping to persist across logon sessions.

Label As: Optionally, provide a label for the drive mapping.

Hide/Show this drive: Set according to your preference.

Hide/Show all drives: Set according to your preference.

Step 6: Common Tab Go to the Common tab and configure the following:

Run in logged-on user’s security context (user policy option): Check this option.

Item-level targeting: Click on Targeting and set up any specific criteria if needed.

Step 7: Apply the GPO Click Apply and then OK to save the drive mapping configuration.

Step 8: Link the GPO Link the GPO to an Organizational Unit (OU) or domain that contains the users who should receive the drive mapping.

Step 9: Update Group Policy Instruct users to log off and log back on, or use the gpupdate /force command to refresh Group Policy on their computers.

TASK 2

???? Objective: Configure DC3 to replicate with DC1 and DC2 only between 8:00 PM and 6:00 AM.

Step-by-Step Guide: Replication Scheduling for DC3

✅ Step 1: Promote DC3 to a Domain Controller (if not already done)

Use Server Manager or PowerShell to install the Active Directory Domain Services role and promote the server as a domain controller.

Example PowerShell command to install the AD DS role:

powershell

Copy

Install-WindowsFeature AD-Domain-Services

To promote:

powershell

Copy

Install-ADDSDomainController -DomainName "contoso.com"

✅ Step 2: Open Active Directory Sites and Services

Log in to DC3 or another DC with administrative tools.

Open Active Directory Sites and Services (dssite.msc).

✅ Step 3: Locate the Site

In the left pane, expand the Sites container and find the site that contains DC3.

Expand the site to find Servers.

Under Servers, select DC3.

✅ Step 4: Configure Replication Connection Objects

Expand DC3 and click on NTDS Settings.

In the right pane, you’ll see connection objects to other domain controllers (these represent replication partners).

✅ Step 5: Adjust the Replication Schedule for Each Connection

For each connection object to DC1 and DC2:

Right-click the connection object and select Properties.

Click the Change Schedule button.

✅ Step 6: Set the Replication Schedule

In the schedule window, you’ll see a grid of hours.

Clear all hours except the time window of 8 PM to 6 AM (in 1-hour blocks).

Select 8 PM to 6 AM (10 hours total) for all days.

Click OK to save.

✅ Step 7: Verify and Document

Ensure that both connection objects (to DC1 and DC2) have the updated schedule.

Document your configuration as part of your environment’s change control.

TASK 4

???? Objective:

Enforce a minimum password length of 12 characters for members of the BranchAdmins group only.

Step-by-Step Guide: Fine-Grained Password Policy (FGPP)

✅ Step 1: Verify Forest Functional Level

Fine-grained password policies require the forest functional level to be at least Windows Server 2008.

On a DC, open Active Directory Domains and Trusts (domain.msc).

Right-click the domain and select Raise Forest Functional Level to verify.

If it’s lower, consider raising it (requires caution and planning).

✅ Step 2: Open the Active Directory Administrative Center (ADAC)

On a DC or management server, open ADAC:

Press Windows + R, type dsac.exe, and hit Enter.

✅ Step 3: Create a Fine-Grained Password Policy

In ADAC, in the left pane, expand the domain (e.g., contoso.com) and click System > Password Settings Container.

In the right pane, right-click and select New > Password Settings.

✅ Step 4: Configure the Password Policy

Name: e.g., BranchAdminsPSO.

Precedence: e.g., 1 (lower number = higher priority).

Minimum password length: 12.

Configure other settings as required (leave them at default if not specified).

In Directly Applies To, click Add.

Search for and select the BranchAdmins group.

Click OK.

✅ Step 5: Confirm and Apply

Click OK to create the policy.

It’s now linked directly to the BranchAdmins group, affecting only its members.

✅ Step 6: Verify the Policy

You can use PowerShell to confirm that the PSO is applied:

Get-ADUserResultantPasswordPolicy -Identity "username"

Replace "username" with a user from the BranchAdmins group. The output will show the minimum password length (should be 12).

Objective:

Create a read-only copy of the DNS zone contoso.com on SRV2.

Step-by-Step Guide: Using a Secondary Zone

✅ Step 1: Log in to SRV2

Log in to SRV2 (where you want to host the secondary zone) using an account with local administrative privileges.

✅ Step 2: Open DNS Manager

Press Windows + R, type dnsmgmt.msc, and press Enter.

✅ Step 3: Create a Secondary Zone

In the DNS Manager, expand the server node for SRV2.

Right-click Forward Lookup Zones and select New Zone.

The New Zone Wizard opens.

✅ Step 4: Configure the Secondary Zone

Zone Type:

Select Secondary zone and click Next.

Zone Name:

Type contoso.com and click Next.

Master DNS Servers:

Enter the IP address of the master DNS server that hosts the primary zone (e.g., SRV1’s IP).

Click Next.

Finish:

Review the settings and click Finish.

✅ Step 5: Allow Zone Transfers on the Primary Server

On SRV1 (or the DNS server hosting the primary zone):

Open DNS Manager.

Right-click the contoso.com zone and select Properties.

Go to the Zone Transfers tab.

Check Allow zone transfers.

Specify SRV2’s IP address (or allow to any server if needed).

✅ Step 6: Verify Zone Replication

On SRV2, refresh the Forward Lookup Zones in DNS Manager.

The contoso.com zone should now appear as a Secondary zone.

Check the Zone Transfer status to ensure it successfully replicated.

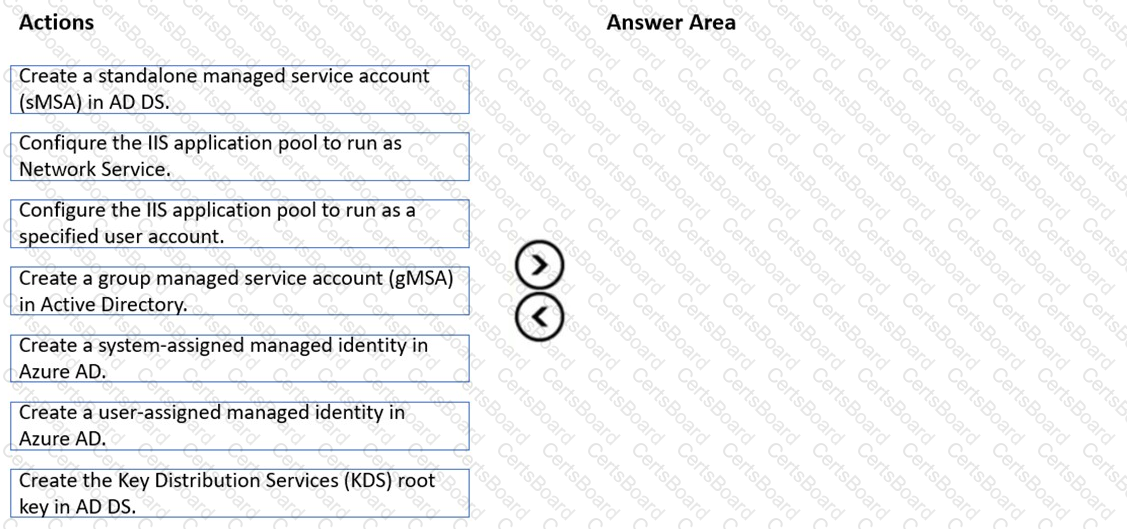

To configure the domain to support the creation of gMSAs, you need to perform the following steps:

On a domain controller or a computer that has the Remote Server Administration Tools (RSAT) installed, open PowerShell as an administrator and run the following command to install the Active Directory module:

Install-WindowsFeature -Name RSAT-AD-PowerShell

Run the following command to create a Key Distribution Service (KDS) root key, which is required for generating passwords for gMSAs. You only need to do this once per domain:

Add-KdsRootKey -EffectiveImmediately

Wait for at least 10 hours for the KDS root key to replicate to all domain controllers in the domain. Alternatively, you can use the -EffectiveTime parameter to specify a past date and time for the KDS root key, but this is not recommended for security reasons. For more information, see Add-KdsRootKey.

After the KDS root key is replicated, you can create and configure gMSAs using the New-ADServiceAccount and Set-ADServiceAccount cmdlets. For more information, see Create a gMSA and Configure a gMSA.

To create an AD DS site named Site2 that is associated to an IP address range of 192.168.2.0 to 192.168.2.255, you can follow these steps:

On a domain controller or a computer that has the Remote Server Administration Tools (RSAT) installed, open Active Directory Sites and Services from the Administrative Tools menu or by typing dssite.msc in the Run box.

In the left pane, right-click on Sites and select New Site.

In the New Object - Site dialog box, enter Site2 as the Name of the new site. Select a site link to associate the new site with, such as DEFAULTIPSITELINK, and click OK. You can also create a new site link if you want to customize the replication frequency and schedule between the sites. For more information on how to create a site link, see Create a Site Link.

In the left pane, right-click on Subnets and select New Subnet.

In the New Object - Subnet dialog box, enter 192.168.2.0/24 as the Prefix of the subnet. This notation represents the IP address range of 192.168.2.0 to 192.168.2.255 with a subnet mask of 255.255.255.0. Select Site2 as the Site object to associate the subnet with, and click OK.

Wait for the changes to replicate to other domain controllers. You can verify the site and subnet creation by checking the Sites and Subnets containers in Active Directory Sites and Services.

Now, you have created an AD DS site named Site2 that is associated to an IP address range of 192.168.2.0 to 192.168.2.255. You can add domain controllers to the new site and configure the site links and site link bridges to optimize the replication topology.

TASK 5

???? Objective:

Configure a Group Policy Preference to create a shortcut to \\srvi.contoso.com\data on the desktop of users in the Server Admins OU.

Step-by-Step Guide: Using Group Policy Preferences to Create a Desktop Shortcut

✅ Step 1: Open Group Policy Management Console (GPMC)

Log in to a DC or a management computer with RSAT installed.

Open Group Policy Management (gpmc.msc).

✅ Step 2: Create a New GPO

In the GPMC console, expand the forest and the domain (e.g., contoso.com).

Right-click the OU named Server Admins and select Create a GPO in this domain, and Link it here.

Name the GPO, e.g., Desktop Shortcut for Server Admins.

✅ Step 3: Edit the GPO

Right-click the newly created GPO and select Edit.

This opens the Group Policy Management Editor.

✅ Step 4: Navigate to User Preferences

In the editor, expand:

User Configuration > Preferences > Windows Settings > Shortcuts.

✅ Step 5: Create the Shortcut

Right-click Shortcuts and select New > Shortcut.

In the New Shortcut Properties window:

Action: Create

Name: Data Folder

Target Type: File System Object

Location: Desktop

Target Path: \\srvi.contoso.com\data

Optionally, set an icon or description if you want.

✅ Step 6: Configure Item-Level Targeting (Optional)

If you want to limit this shortcut strictly to specific users/groups, click the Common tab.

Check Item-level targeting and configure conditions (optional).

For this scenario, linking the GPO to the Server Admins OU is usually sufficient.

✅ Step 7: Close and Update

Close the editor.

In GPMC, ensure the GPO is linked to the Server Admins OU.

Force a Group Policy Update on client computers:

On a client computer:

gpupdate /force

Or wait for the next Group Policy refresh cycle.

✅ Step 8: Verify

Log in as a user in the Server Admins OU.

The shortcut to \\srvi.contoso.com\data should appear on the desktop.

To create a GPO named GPO1 that only applies to a group named MemberServers, you can follow these steps:

On a domain controller or a computer that has the Remote Server Administration Tools (RSAT) installed, open Group Policy Management from the Administrative Tools menu or by typing gpmc.msc in the Run box.

In the left pane, expand your domain and right-click on Group Policy Objects. Select New to create a new GPO.

In the New GPO dialog box, enter GPO1 as the Name of the new GPO and click OK. You can also optionally select a source GPO to copy the settings from.

Right-click on the new GPO and select Edit to open the Group Policy Management Editor. Here, you can configure the settings that you want to apply to the group under the Computer Configuration and User Configuration nodes. For more information on how to edit a GPO, see Edit a Group Policy Object.

Close the Group Policy Management Editor and return to the Group Policy Management console. Right-click on the new GPO and select Scope. Here, you can specify the scope of management for the GPO, such as the links, security filtering, and WMI filtering.

Under the Security Filtering section, click on Authenticated Users and then click on Remove. This will remove the default permission granted to all authenticated users and computers to apply the GPO.

Click on Add and then type the name of the group that you want to apply the GPO to, such as MemberServers. Click OK to add the group to the security filter. You can also click on Advanced to browse the list of groups available in the domain.

Optionally, you can also configure the WMI Filtering section to further filter the GPO based on the Windows Management Instrumentation (WMI) queries. For more information on how to use WMI filtering, see Filter the scope of a GPO by using WMI filters.

To link the GPO to an organizational unit (OU) or a domain, right-click on the OU or the domain in the left pane and select Link an Existing GPO. Select the GPO that you created, such as GPO1, and click OK. You can also change the order of preference by using the Move Up and Move Down buttons.

Wait for the changes to replicate to other domain controllers. You can also force the update of the GPO by using the gpupdate /force command on the domain controller or the client computers. For more information on how to update a GPO, see Update a Group Policy Object.

Now, you have created a GPO named GPO1 that only applies to a group named MemberServers. You can verify the GPO application by using the gpresult /r command on a member server and checking the Applied Group Policy Objects entry. You can also use the Group Policy Results wizard in the Group Policy Management console to generate a report of the GPO application for a specific computer or user. For more information on how to use the Group Policy Results wizard, see Use the Group Policy Results Wizard.

To manage SRV1 remotely using PowerShell, you’ll need to set up PowerShell Remoting. Here’s a step-by-step guide:

Step 1: Enable PowerShell Remoting on SRV1 On SRV1, run the following command to enable PowerShell Remoting:

Enable-PSRemoting -Force

This command configures the computer to receive PowerShell remote commands that are sent by using the WS-Management technology.

Step 2: Configure the TrustedHosts List (If Needed) If you’re managing SRV1 from a computer that is not part of the same domain, you’ll need to add the managing computer’s name to the TrustedHosts list on SRV1:

Set-Item wsman:\localhost\Client\TrustedHosts -Value "ManagingComputerName" -Concatenate -Force

Replace “ManagingComputerName” with the name of your managing computer.

Step 3: Start a Remote Session From your managing computer, start a remote session with SRV1 using the Enter-PSSession cmdlet:

Enter-PSSession -ComputerName SRV1 -Credential (Get-Credential)

This command prompts you for credentials and then starts a remote session with SRV1.

Step 4: Run Remote Commands Once the remote session is established, you can run any PowerShell command as if you were directly on SRV1. For example:

Get-Service

This command gets the status of services on SRV1.

Step 5: Exit the Remote Session When you’re finished, exit the remote session:

Exit-PSSession

Note: Ensure that both the managing computer and SRV1 are properly configured to communicate over the network, and that any firewalls allow for the necessary ports (default is 5985 for HTTP and 5986 for HTTPS) to be open for WS-Management traffic12.

By following these steps, you should be able to manage SRV1 remotely using PowerShell. Make sure you have the appropriate administrative privileges to perform these actions.

TASK 7

???? Objective:

Attach the VHDX file c:\vhds\Disk1.vhdx to VM1 so it can dynamically expand when VM1 is running.

Step-by-Step Guide

✅ Step 1: Verify the VHDX File Type

Dynamic expansion means the virtual disk type should be dynamic (not fixed).

Let’s verify the disk type of Disk1.vhdx:

powershell

Copy

Get-VHD -Path "c:\vhds\Disk1.vhdx"

In the output, ensure that VhdType shows Dynamic.

If it’s not dynamic, convert it:

powershell

Copy

Convert-VHD -Path "c:\vhds\Disk1.vhdx" -DestinationPath "c:\vhds\Disk1_dynamic.vhdx" -VHDType Dynamic

✅ Step 2: Attach the VHDX to VM1

Use PowerShell to add the disk to VM1:

powershell

Copy

Add-VMHardDiskDrive -VMName "VM1" -Path "c:\vhds\Disk1.vhdx"

✅ Or do it via Hyper-V Manager:

Open Hyper-V Manager.

Select VM1 and go to Settings.

In the left pane, select SCSI Controller (recommended for hot-add).

Click Add Hard Drive.

Browse and select c:\vhds\Disk1.vhdx.

Click Apply and OK.

✅ Step 3: Verify Hot-Add Support (Optional)

If VM1 is running Windows Server 2012 or later and uses a SCSI Controller, the VHDX can be added without shutting down the VM.

✅ Step 4: Verify the Disk in the VM

Inside VM1, open Disk Management (diskmgmt.msc).

The newly attached disk should appear as unallocated.

Initialize it, create a volume, and format if needed.

Summary

VHDX file type: Must be dynamic for expanding.

Hot-adding supported if attached via SCSI Controller and OS supports it.

Now Disk1.vhdx is attached to VM1 and can expand dynamically.
