Understanding DIS Election in IS-IS:

On an IS-IS broadcast network, aDesignated Intermediate System (DIS)is elected to create and update pseudonodes for efficient communication.

The election is based on the following criteria:

DIS Priority:The router with the highest priority is elected as the DIS.

Router ID (tie-breaker):If priorities are equal, the router with the highest Router ID is elected.

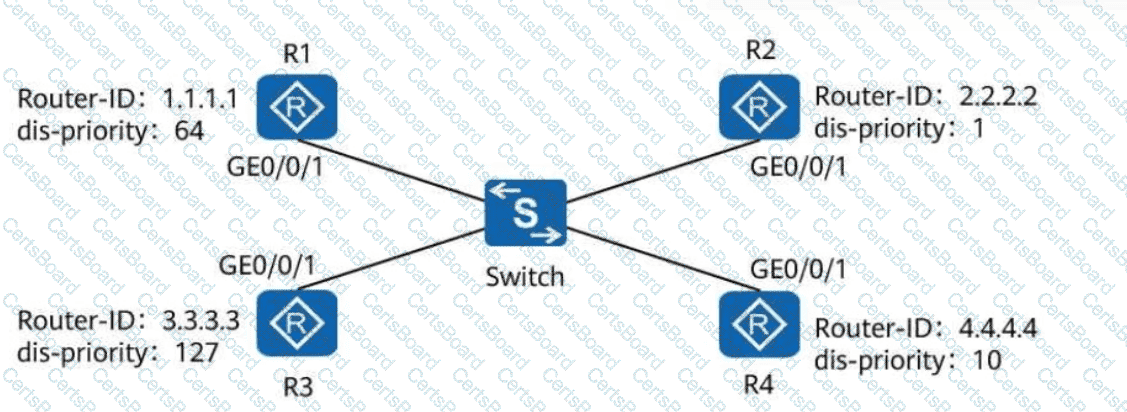

Analyzing the DIS Priorities and Router IDs:

R1: Priority = 64, Router ID = 1.1.1.1

R2: Priority = 1, Router ID = 2.2.2.2

R3: Priority = 127, Router ID = 3.3.3.3

R4: Priority = 10, Router ID = 4.4.4.4

Among the routers,R3 has the highest DIS priority (127), making it the DIS.

Correct Option:

Option B (R3):Correct, as R3 has the highest priority.

Option A (R1):Incorrect, as its priority is lower (64).

Option C (R4):Incorrect, as its priority is lower (10).

Option D (R2):Incorrect, as its priority is the lowest (1).

Comprehensive and Detailed Step-by-Step Explanation:

IS-IS Area Division:

IS-IS divides areas byrouters, not by links. A router is assigned to a specific IS-IS area, but it can belong to multiple levels:

Level 1:Maintains the LSDB (Link State Database) for the local area only.

Level 2:Maintains the LSDB for the backbone area and exchanges routes between areas.

Behavior of a Level 1-2 Router:

A router configured as Level 1-2 must maintain two separate LSDBs:

One for intra-area routes (Level 1).

One for inter-area routes (Level 2).

Incorrect Statement:

The statement that an IS-IS router only needs to maintain the LSDB of its area is incorrect because Level 1-2 routers maintain LSDBs for both levels.

 GRE Characteristics

GRE doesnotinherently support encryption or authentication. It is a tunneling protocol for encapsulating packets, and data security features must be implemented using other protocols such as IPsec.

Other correct attributes of GRE include:

B.Supports multicast transmission.

C.Acts as a Layer 3 VPN encapsulation technology.

D.Can work with VPN protocols like IPsec for better security.

 HCIP-Datacom-Core Reference

GRE features and limitations are discussed in VPN encapsulation technology chapters​​.

Comprehensive and Detailed in-depth Step-by-Step Explanation:

In an Intermediate System to Intermediate System (IS-IS) network, aDesignated Intermediate System (DIS)is elected on broadcast networks to perform the following functions:

Represent the broadcast network as a pseudonode.

Generate and update the Link State Protocol Data Units (LSPs) for the pseudonode.

The DIS is elected based on theDIS priorityvalue, which is configured on IS-IS interfaces. If two routers have the same priority, the router with the higher MAC address becomes the DIS.

Thedefault DIS priorityfor IS-IS interfaces is64, which can be modified depending on the network requirements.

Option A (200):Incorrect. This is not the default value.

Option B (64):Correct. This is the default DIS priority value.

Option C (1):Incorrect. This is not the default value.

Option D (100):Incorrect. This is not the default value.

In PIM-DM (Protocol Independent Multicast - Dense Mode), the SPT (Shortest Path Tree) establishment process involves flooding to propagate multicast traffic across the network, prune messages to stop sending multicast traffic to unwanted interfaces, and graft messages to re-establishforwarding when needed. State-refresh is not directly involved in SPT establishment but helps maintain the prune state ​.

In asynchronous mode, two devices exchange BFD Control packets to monitor connectivity. However, this mode does support the echo function, which tests bidirectional paths by sending packets that loop back to the origin. This statement is incorrect. Demand mode, on the otherhand, minimizes the control packet exchange, relying on periodic echo packets if configured. Huawei's BFD configuration guides emphasize these distinctions ​.

BFD operates at the network layer, providing rapid fault detection for forwarding paths, such as IP routing and MPLS tunnels. It interacts closely with network protocols (e.g., OSPF, BGP) to ensure high reliability and quick response to faults. BFD does not belong to the application, data link, or physical layers but functions as a network layer diagnostic tool as confirmed in Huawei's network protocol training ​.

Wi-Fi 6 corresponds to the IEEE 802.11ax standard. It offers improved efficiency, higher data rates, and better performance in dense environments compared to its predecessors like 802.11ac (Wi-Fi 5) and 802.11n (Wi-Fi 4) ​.

Comprehensive and Detailed In-Depth Explanation:

OSPF-to-BGP route redistributiondoesnot allow modification of MED valuesdirectly using aroute-policyin Huawei devices.

Instead,MED can be set using a BGP attribute policy, not through the import command.

All other options (B, C, D) are correct:

B→ Route-policycan filter imported direct routes.

C→ network commanddoes not modify attributes, only announces existing routes.

D→ peer commandcan set Local Preferencevia route-policy.

????Reference:Huawei HCIA-Datacom Study Guide, BGP Route Policy and Attribute Modification.

The scenario describes a mismatch in OSPF network types between two connected routers: one set to Point-to-Point (P2P) and the other set to Point-to-Multipoint (P2MP). While aligning Hello intervals may seem sufficient for establishing an OSPF neighbor relationship, the fundamental mismatch in network types introduces issues.

OSPF Network Types

P2P: Assumes a direct connection with a single neighbor, uses faster convergence and simpler LSDB synchronization.

P2MP: Supports multiple neighbors on a single interface, requiring different handling for DR/BDR roles and LSDB updates.

Impact of Network Type Mismatch

If Hello intervals are aligned, adjacency establishment might occur. However, mismatched network types affect neighbor role assignment and LSDB synchronization.

P2P expects a direct link and would handle updates differently than P2MP, which assumes multiple neighbors. This leads to inconsistencies in route calculation and forwarding.

HCIP-Datacom-Core Reference

OSPF Basics and Configuration​clearly outlines the criticality of consistent network type configuration for stable OSPF operation.

Lab examples in the HCIP Datacom Lab Guide​further demonstrate the consequences of such mismatches, including unstable neighbor states and incomplete LSDB synchronization.

Hence, the statement that neighbor relationships and LSDB synchronization remain unaffected is incorrect. Proper OSPF operation requires matching network types in addition to aligned Hello intervals.
