When the aggregate-address command is used within BGP routing, the aggregated address is advertised, along with the more specific routes. The exception to this

rule is through the use of the summary-only command. The “summary-only” keyword suppresses the more specific routes and announces only the summarized

route.

In order to use a prefix-list in a route-map, we must use the keyword “prefix-list” in the “match”

statement. . For example:

match ip address prefix-list WAN_PREFIXES

Without this keyword, the router will try to find an access-list with the same name instead.

https://www.cisco.com/c/en/us/support/docs/wireless/4400-series-wireless-lan-controllers/109597-csr-chained-certificates-wlc-00.html#anc12

After redistribution, R3 learns about network 10.1.1.0/24 via two paths:+ Internal BGP (IBGP): advertised from R4 with AD of 200 (and metric of 0)+ OSPF: advertised from R1 with AD of 110 (O E2) (and metric of 20)Therefore R3 will choose the path with the lower AD via OSPF

But this is a looped path which is received from R3 -> R2 -> R1 -> R3. So when the advertised route from R4 is expired, the looped path is also expired soon and R3 willreinstall the main path from R4. This is the cause of intermittent connectivity.In order to solve this issue, we can lower the AD of iBGP to a value which is lower than 110 so that it is preferred over OSPF-advertised route.

In the configuration above, the engineer has made a mistake as he was tracking 172.16.35.6 (the backup path) instead of tracking the main path (172.16.35.2). Therefore,when he shut down the main path, the track 1 was still up so traffic still went through the main path -> it failed.

To fix this issue, we just need to correct the tracking interface of the main path.

https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/sec_conn_dmvpn/configuration/15-mt/sec-conn-dmvpn-15-mt-book/sec-conn-dmvpn-dmvpn.html

https://www.cisco.com/c/en/us/td/docs/cloud-systems-management/network-automation-and management/dnacenter/tech_notes/b_dnac_sda_lan_automation_deployment.html

1. R1 received DHCP packet and its interface was configured with the DHCP helper address. But we are not sure if R1 forward DHCP packet to R2 or not. 2. If we connect PC directly to R2 then this problem will not appear -> DHCP Server function was configured on R2.

From these facts, the most likely problem is related to Option 82. Maybe R2 ignored DHCP request packets because it was receiving these packets with the giant field set to 0.0.0.0.

By default Cisco IOS devices reject packets with zero “giaddr” and by default Cisco Catalyst switches use “giaddr” of zero when configured for DHCP snooping! Reference: https://blog.ine.com/2009/07/22/understanding-dhcp-option-82

If we can run the “debug ip dhcp server packet” on R2, we may see these messages:

*Feb 22 23:54:57.759: IP: s=0.0.0.0 (FastEthernet0/1), d=255.255.255.255, len 34 4, input feature, MCI Check(64), rtype 0, forus FALSE, sendself FALSE, mtu 0, fw dchk FALSE *Feb 22 23:54:57.759: IP: s=0.0.0.0 (FastEthernet0/1), d=255.255.255.255, len 34 4, rcvd 2 *Feb 22 23:54:57.759: IP: s=0.0.0.0 (FastEthernet0/1), d=255.255.255.255, len 34 4, stop process pak for forus packet

*Feb 22 23:54:57.759: DHCPD: inconsistent relay information. *Feb 22 23:54:57.759: DHCPD: relay information option exists, but giaddr is zero

We are receiving the DHCP packet from R1, source 0.0.0.0, and destination 255.255.255.255 broadcast, but if you notice from the debug output, R2, our DHCP Server, is complaining that the relay information is inconsistent. Option 82, Information Option, is contained in the packet but the GIADDR is zero. The GIADDR stands for Gateway IP Address, which is the IP Address of the relaying agent. The Option 82, Information Option, would then contain the receiving port and hostname of the Relaying Agent by default.

R2 sees the Option 82 information, signalling that the DHCP packet might have been relayed, BUT there is no relaying IP Address. This is the behavior of DHCP Snooping when enabling it on a switch, and since the switchport does not contain an IP Address, since it’s Layer 2, no GIADDR will be added.

Instead, just the Option 82 Information is added and this is the problem we have, but there are options:

1. You could trust all on R2 the DHCP Server, which will cause the server to not be so suspicious: – ip dhcp relay information trust-all – ip dhcp relay information trusted 2. Disable theaddition of Option 82 information on SW: – no ip dhcp snooping information option 3. Trust the port that is receiving the DHCP Discover: – ip dhcp snooping trust

Any of these options will fix our predicament.

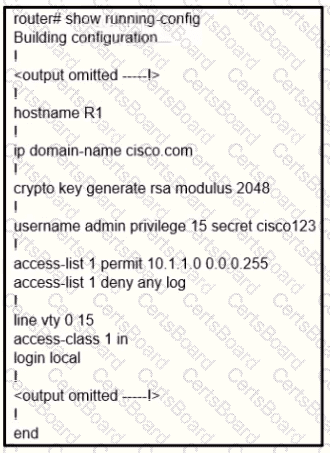

To ACL should be permit tcp 101 10.1.1.1 0.0.0.0

The error “Administratively disabled” means we need to enable SCP on the router with the command: Router(config)#ip scp server enable
