A practical advantage of model-driven telemetry is that it sends structured data in machine-readable encodings, including JSON in supported implementations, making the data easier to consume with modern collectors and automation tools. Model-driven telemetry uses data models, commonly YANG, to define exactly which operational or configuration data is streamed. This is a major improvement over legacy monitoring approaches that repeatedly poll devices or parse human-oriented CLI output. The question option that points to structured JSON compatibility is the best available answer. Telemetry is not based on interrupt-driven polling; it is normally subscription based, either periodic or on-change. It also does not rely on MIB models as its primary structure in the way SNMP does. Parsing show command output is the older, brittle method that model-driven telemetry is intended to replace. The design benefit is cleaner, more predictable, and more programmable network state collection. Reference topics: model-driven telemetry, YANG data models, JSON encoding, subscription-based monitoring, network programmability.

The drag-and-drop mapping separates WAN connectivity technologies by the service characteristics they deliver. Cisco enterprise WAN designs distinguish private WAN options, such as MPLS Layer 3 VPN, Ethernet WAN, VPLS, and VPWS, from Internet-based options such as broadband, LTE, and VPN overlays. Layer 3 MPLS VPN gives the provider responsibility for routing between customer sites and is commonly used when private any-to-any routing, QoS treatment, and segmentation are required. Layer 2 services such as VPWS and VPLS extend customer Layer 2 adjacency across a provider network; VPWS is point-to-point, while VPLS is multipoint. Internet and cellular links are typically lower-cost and fast to deploy, but they require overlay security, such as IPsec, DMVPN, or SD-WAN encryption, when used for enterprise private traffic. The selected mapping therefore aligns each description with the WAN category that actually provides that behavior. In design work, the architect must compare latency, resiliency, SLA, QoS preservation, encryption requirements, routing control, and operational ownership before selecting the WAN type. Reference topics: enterprise WAN connectivity, MPLS VPN, VPLS, VPWS, Internet VPN, cellular backup.

Reverse Path Forwarding prevents multicast loops and duplicate packet forwarding. Multicast routing is source-oriented, so a router must verify that multicast traffic arrives on the interface it would use to reach the source or rendezvous point, depending on the tree state. If the packet arrives on the expected reverse-path interface, the RPF check succeeds and the router can forward the packet to the outgoing interface list. If it arrives on the wrong interface, the packet is dropped because accepting it could create a loop or duplicate stream. Cisco multicast designs rely on RPF checks with PIM to maintain loop-free distribution trees across redundant routed topologies. RPF does not notify upstream routers by itself, does not eliminate overlapping multicast group addresses, and is not simply a prune-generation mechanism. Prune behavior can occur as part of PIM tree maintenance, but the function asked here is loop prevention. Reference topics: multicast RPF check, PIM forwarding, source tree, shared tree, outgoing interface list, duplicate suppression.

Contracting an internet connection and deploying DMVPN is the most practical solution when the enterprise needs a fast, affordable, and reliable backup for a single MPLS provider. DMVPN can use broadband internet transport to build encrypted GRE/IPsec tunnels between sites, providing a backup WAN path without waiting for another private MPLS provider circuit. It supports dynamic routing and can be deployed incrementally, which makes it suitable after a recent outage when time and cost matter. BFD echo mode toward a provider PE can improve failure detection, but it does not create an alternate transport if the only MPLS provider has an outage. Adding a WAN router and a floating static route also fails unless another path exists. Contracting a second MPLS provider and deploying GETVPN may be robust, but it is slower and more expensive than the requested quick and affordable backup. Reference topics: DMVPN backup WAN, MPLS resiliency, internet VPN, IPsec, branch availability, rapid WAN deployment.

Rapid PVST+ and VTP address the stated redesign goals. Moving from IEEE 802.1D STP to Rapid PVST+ reduces the impact of topology changes because rapid spanning tree provides faster convergence through proposal/agreement behavior and faster port-role transitions. That improves availability compared with classic STP timers. VTP reduces administrative effort and manual configuration errors by centrally propagating VLAN information across switches in the same VTP domain. It can also support pruning so unused VLAN traffic is not unnecessarily carried across trunks. MST could reduce spanning-tree instance count, but the question emphasizes reducing topology-change impact and reducing manual VLAN configuration work; Rapid PVST+ plus VTP addresses both directly. Storm control helps limit broadcast and multicast traffic but does not solve STP convergence or VLAN administration. Dynamic Trunking Protocol negotiates trunk state; it does not propagate VLAN information and is often avoided in deterministic campus designs. In production, VTP should be used carefully with version control, domain/password discipline, and change governance because incorrect VTP configuration can have broad impact. Reference topics: Rapid PVST+, STP convergence, VTP, VLAN pruning, campus Layer 2 operations.

The selected IS-IS design must place the correct routers as Level 1/Level 2 boundary routers so that area failures stay local while traffic can still reach backbone application services. In a hierarchical IS-IS design, Level 1 routers exchange detailed topology only inside their own area. Level 2 routers form the backbone used for interarea connectivity. L1/L2 routers connect the local area to the backbone and advertise reachability between the two levels. Areas 20 and 30 are expected to double in size, and link flaps inside those areas must not impact the backbone. Therefore, the design should keep internal area routers at Level 1 and use only the boundary devices that connect those areas to the backbone as L1/L2. Option A matches that principle by selecting the appropriate boundary routers for interlevel connectivity while avoiding unnecessary L1/L2 adjacencies throughout the topology. The other options either place the wrong routers in Level 2 only or fail to provide a clean transition between local areas and the backbone. Reference topics: IS-IS hierarchy, L1/L2 boundary design, area containment, backbone stability, route leaking.

The correct BGP design is to attach the well-known No-Export community to the prefixes that should not be advertised beyond the service provider boundary. Cisco BGP communities are policy attributes that allow routes to carry instructions or classifications across BGP peers. The No-Export community tells a receiving BGP speaker not to advertise the route outside its confederation or autonomous system. That behavior is exactly what is needed when branch prefixes may be exchanged with the provider but must not be propagated to the public Internet. The No-Advertise community is stronger: it prevents the route from being advertised to any BGP peer, which may block reachability even where the provider still needs to know the route. NOPEER is used for route-server or peering policy control and is not the clean answer for excluding branch prefixes from Internet propagation. Setting a generic “Internet community” is not a standard solution by itself. The architect should also ensure that outbound prefix filters and provider-side community support are documented in the service agreement. Reference topics: BGP communities, No-Export, No-Advertise, provider edge filtering, Internet route policy.

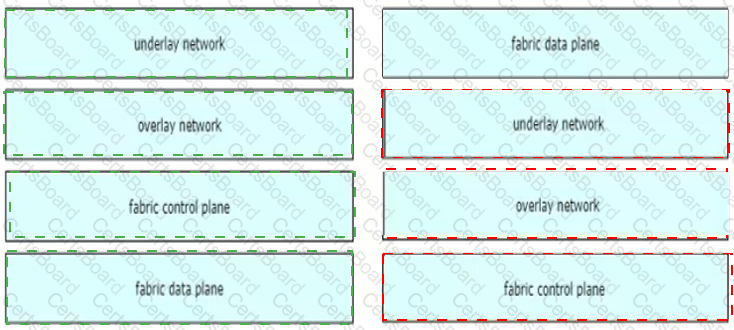

The Cisco SD-Access data plane is based on VXLAN. This duplicate item tests the same fabric-plane distinction: LISP handles endpoint-to-location mapping in the control plane, while VXLAN transports encapsulated user traffic in the data plane. Cisco describes SD-Access as using a routed underlay with an overlay in which VXLAN encapsulation carries endpoint traffic between fabric nodes. VXLAN supports the fabric’s virtual network separation and policy transport, allowing the enterprise to move beyond VLAN-only segmentation while keeping the underlay simple and routed. OMP is not part of SD-Access data-plane forwarding; it belongs to Cisco SD-WAN. NHRP is used in DMVPN to resolve next-hop tunnel addresses. LISP is not the answer here because it tells a fabric node where an endpoint is located, while VXLAN is the encapsulation method used to forward the traffic there. Reference topics: Cisco SD-Access architecture, VXLAN, LISP, data plane, control plane, endpoint mobility.

The valid get-config reply must show OSPF process ID 400 with network 192.168.128.128/25 enabled for Area 0. A /25 prefix has a block size of 128 addresses, so 192.168.128.128/25 is a valid network boundary and covers addresses from 192.168.128.128 through 192.168.128.255. Any reply that shows the wrong OSPF process, an incorrect network boundary, the wrong prefix length or wildcard equivalent, or a nonzero area does not verify the requested model set. In Cisco IOS XE model-driven configuration, the readback has to match the schema path and values used by the model, not simply produce an approximate CLI interpretation. Option B is the reply that confirms the intended OSPF object. This verification method is important because YANG automation can fail silently in operational workflows when the payload is syntactically valid but targets the wrong container or key. A get-config verification step confirms the running datastore contains the exact OSPF process and area membership required by the design. Reference topics: YANG OSPF configuration, NETCONF get-config, prefix validation, IOS XE native models.

EIGRP with stub routing and variance is the best fit for Cisco-only DMVPN branches with unequal Internet link speeds and limited branch resources. EIGRP works well over DMVPN because it supports hub-and-spoke designs, unequal-cost load balancing, and simple branch optimization through stub routing. Stub branches limit query propagation and reduce CPU, memory, and bandwidth consumption on small routers. Variance allows EIGRP to use feasible unequal-cost paths, which is important when one Internet connection is 10 Mbps and the other is 100 Mbps. OSPF can run over DMVPN, but virtual links are not an appropriate branch design and OSPF is less efficient in this specific Cisco-only unequal-bandwidth scenario. IS-IS is not commonly selected for small DMVPN branch overlays. iBGP with route reflectors can scale, but it does not inherently use link utilization and unequal metric behavior as cleanly as EIGRP variance for this requirement. Reference topics: EIGRP over DMVPN, stub routing, variance, unequal-cost load balancing, branch resource optimization.
