A dual-homed Internet design with a single edge router and site-to-site VPN topology best matches the stated cost and flexibility requirements. The customer needs redundant WAN links, has a limited budget, wants easy future bandwidth increases, and does not require consistent end-to-end QoS on the branch routers. Internet circuits are typically less expensive and easier to upgrade than MPLS access circuits, making them appropriate for small to medium-sized remote branches when strong QoS guarantees are not required. A single edge router also reduces hardware cost and operational complexity compared with dual edge routers. WAN MPLS designs can provide stronger service-level guarantees and QoS treatment, but they are more expensive and less flexible for rapid bandwidth upgrades. A design with dual edge routers improves device redundancy but conflicts with the limited-budget condition. Therefore, a dual-homed Internet solution using a site-to-site VPN overlay is the most appropriate option. The architect should still validate encryption requirements, failover behavior, routing preference, and whether the Internet underlay can meet application performance expectations. Reference topics: branch WAN design, dual Internet connectivity, site-to-site VPN, cost-driven WAN selection.

The Cisco SD-Access edge node is equivalent to the access-layer switch in a traditional three-tier campus design. Edge nodes are the fabric devices to which wired endpoints, access points, and other user-facing connections attach. They provide the anycast Layer 3 gateway for connected subnets, classify endpoints into virtual networks, apply policy information, and register endpoint reachability with the SD-Access control-plane node. In traditional campus terminology, this is the role normally performed by access switches at the edge of the network. Border nodes connect the SD-Access fabric to external networks, such as the WAN, data center, internet edge, or shared services. Intermediate nodes provide underlay transport between fabric nodes but do not attach endpoints to the fabric overlay. Control-plane nodes maintain mapping information rather than serving as access-layer attachment points. Understanding the edge-node role is fundamental because SD-Access policy and host mobility begin where the endpoint enters the fabric. Reference topics: SD-Access edge node, access layer, anycast gateway, endpoint registration, fabric roles.

Redundancy for Cisco vBond Orchestrators is normally achieved by mapping the IP addresses of multiple vBond instances to a single DNS name. WAN Edge devices use the configured organization name and vBond DNS name during onboarding to resolve and contact an available orchestrator. This design allows several vBond nodes to be deployed across different locations or availability zones while giving the edge device a consistent bootstrap target. If one vBond is unavailable, DNS resolution can return another reachable vBond address, allowing control-connection orchestration to continue. Selecting only the closest vBond is not the redundancy mechanism described here, and deploying a single vBond creates an avoidable single point of failure. The answer that says WAN Edge routers are configured with all orchestrators by IP address and priority does not represent the common DNS-based design model. In production, the DNS record, certificates, firewall policy, NAT behavior, and controller reachability should all be validated so that WAN Edge devices can reach multiple vBond instances during onboarding and after failures. Reference topics: Cisco SD-WAN controller redundancy, vBond DNS, device onboarding, orchestration availability.

Bidirectional PIM is the multicast protocol mode designed for many-to-many applications where many receivers may also act as sources. In traditional PIM Sparse Mode, multicast forwarding can use shared trees through an RP and source-specific shortest-path trees. As the number of sources grows, maintaining source-specific state can increase routing table and control-plane scale requirements. BIDIR-PIM avoids source trees by using a shared bidirectional tree rooted at the rendezvous point address. Traffic from sources and traffic toward receivers uses the shared tree, which allows the multicast group to scale to a large number of sources without creating per-source state in the network. This aligns directly with the requirement that most multicast sources also receive multicast traffic and that source trees must not be used. PIM-SSM explicitly uses source-specific forwarding and requires receivers to know the source. PIM-SM may switch to source trees depending on behavior and policy. MSDP is used to exchange source information between PIM-SM domains, not to replace source trees inside one domain. Therefore, BIDIR-PIM is the correct design choice.

The required BGP address family is L2VPN EVPN. The design calls for VXLAN over a Layer 3 IPv4 fabric while preserving Layer 2 adjacency and allowing workload mobility between sites. EVPN is the BGP control plane used with VXLAN overlays to advertise MAC reachability, IP host information, and Ethernet segment information in a scalable way. It separates the Layer 2 and Layer 3 overlay control plane from the underlay IGP, which in this case is OSPF. VPNv4 is used for MPLS Layer 3 VPN routes, not VXLAN Layer 2 adjacency. IPv4 unicast advertises ordinary IP prefixes and does not carry MAC mobility or Ethernet VPN information. L2VPN VPLS or VPWS address families are associated with MPLS-based Layer 2 VPN services and do not provide the VXLAN EVPN control-plane model required here. EVPN is therefore the correct family for VXLAN fabrics that need host mobility and scalable Layer 2 extension. Reference topics: BGP EVPN, VXLAN, L2VPN EVPN address family, MAC reachability, workload mobility.

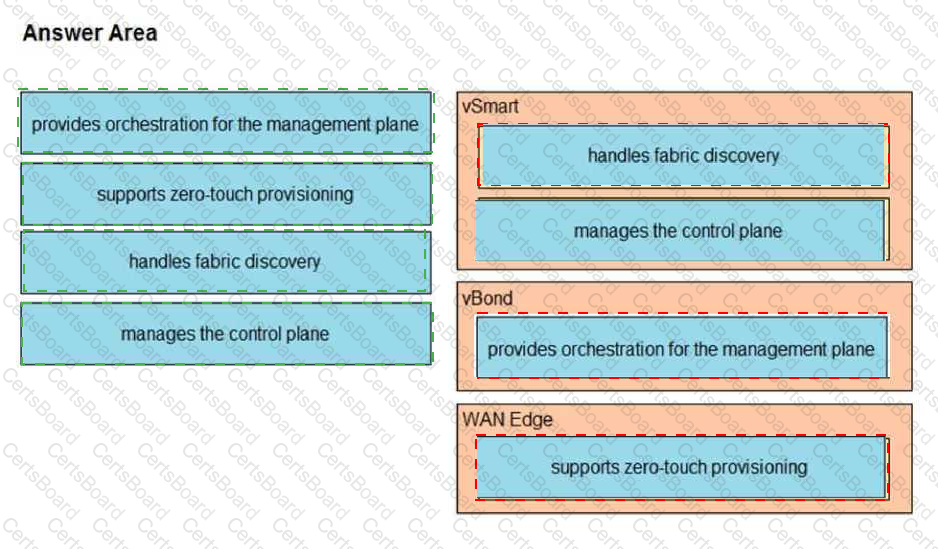

The vSmart controller provides the centralized control plane in a Cisco SD-WAN deployment. It establishes secure control connections with WAN Edge routers and exchanges routing, topology, security, and policy information using OMP. The vSmart controller does not forward user data traffic; data-plane forwarding occurs directly between WAN Edge routers over IPsec or other supported encapsulations. Its function is to distribute reachability information, TLOC information, service routes, centralized policies, application-aware routing policies, and segmentation information that determines how the overlay operates. vBond orchestrates onboarding, authentication facilitation, and NAT traversal for control connections. vManage provides centralized management, monitoring, configuration templates, and operational GUI/API functions. vEdge or Cisco IOS XE SD-WAN routers provide the branch or site data plane and local routing functions. Therefore, among the choices, the vSmart controller is responsible for the centralized control plane of the SD-WAN network. Correctly separating orchestration, management, control, and data-plane roles is a core Cisco SD-WAN design principle.

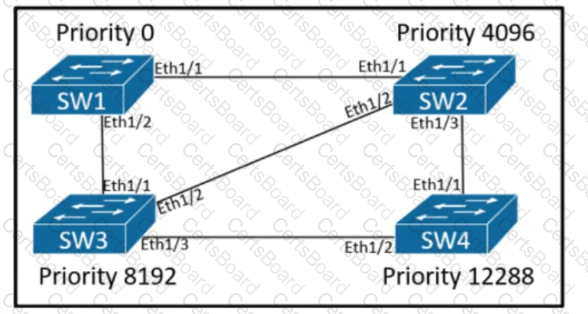

The active logical interface count for Switch A is 202 based on the spanning-tree scalability method used for logical ports. In STP design, a logical port is counted per active VLAN instance on each active trunk or access interface. A trunk carrying multiple VLANs therefore consumes multiple logical STP ports, while an access link normally consumes one logical STP port for its VLAN. Cisco campus design guidance uses logical-port counts to ensure that the selected STP mode and platform stay within supported scalability limits. The calculation in the exhibit produces 202 active logical interfaces for Switch A, not simply the number of physical links. Answer A counts only physical interfaces and ignores VLAN instances. Answer D is too low because it does not account for all active VLANs across the relevant links. Answer B overstates the count by including VLANs or links that are not active for Switch A. Reference topics: STP scalability, logical ports, VLAN instances, trunk design, Layer 2 campus sizing.

A TLOC extension facilitates WAN Edge router redundancy within a site. In Cisco SD-WAN, a Transport Location identifies a WAN transport attachment using attributes such as system IP, color, and encapsulation. A TLOC extension allows one WAN Edge router to use a transport circuit physically connected to another WAN Edge router at the same site. This is valuable when a branch has two edge routers and two transports, but each transport is cabled to only one router. With TLOC extension, each router can still gain logical access to both transports, improving redundancy and allowing better path diversity without adding more service-provider circuits or handoffs. The feature does not simply identify the physical interface; that is part of TLOC definition. It does not increase the number of colors or create a port-channel-style aggregate. A sound design also accounts for failure domains, service-side routing, and whether the inter-router link has enough bandwidth for extended transport traffic. Reference topics: Cisco SD-WAN TLOC, TLOC extension, WAN Edge redundancy, transport color, branch resiliency.

The Cisco SD-Access fabric control-plane node requires the LISP Map-Resolver and Map-Server functions. In SD-Access, fabric edge nodes register locally attached endpoints with the control-plane node, and other fabric nodes query the control plane when they need to locate a destination endpoint. The Map-Server stores Endpoint Identifier to Routing Locator bindings, while the Map-Resolver resolves lookup requests and returns mapping information so the source edge node can encapsulate traffic toward the correct remote fabric node. Ingress Tunnel Router and Egress Tunnel Router roles are performed by fabric edge or border nodes that encapsulate and decapsulate user traffic, not by the dedicated control-plane function. The option labeled Map-Server Proxy reflects the map-server role used in the answer set, while the Map-Resolver is explicitly required. This separation lets SD-Access provide host mobility, anycast gateway behavior, and scalable endpoint reachability without flooding. Reference topics: Cisco SD-Access control plane, LISP, Map-Server, Map-Resolver, EID-to-RLOC mapping, fabric edge registration.

BGP community is the correct attribute because it can support both policy requirements through coordination with the service provider. Communities are route tags that an upstream provider can match to apply routing policy, such as adjusting local preference to influence which dual-homed provider link is preferred for inbound traffic. Communities also include well-known values used to constrain route propagation. Cisco documents no-export as a community that prevents a route from being advertised outside the receiving AS, and no-advertise as a community that prevents advertisement to any peer. This directly matches the requirement that several customer-advertised networks must propagate no further. MED can influence inbound path selection in some dual-link designs, but it does not provide the propagation-control function. AS-path prepending can influence inbound traffic but is less precise and again does not solve the no-further-advertisement requirement. Local preference is normally applied inside an AS, not directly by the customer to external peers. Reference topics: BGP communities, no-export, no-advertise, provider policy, inbound traffic engineering.
