Users in a small location report that audio calls work Tine, but only one video call works before the next one gets a busy signal. Three video conference rooms were recently installed by a third party. The audio and video devices are Cisco endpoints. The site uses video and audio calls, and a network investigation does not show saturation on the link The site is configured with QoS and CoS. All devices are registered on the headquarters Cisco UCM duster. What is the cause of this problem?

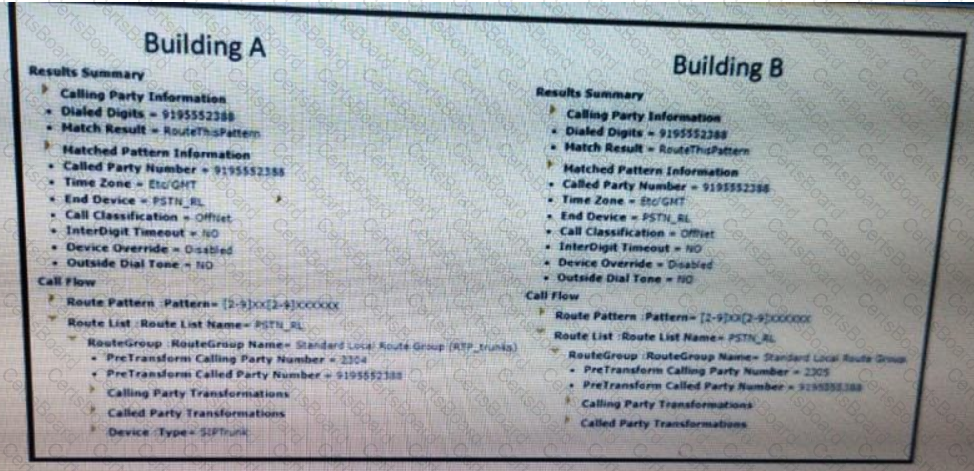

Refer to the exhibit.
A user cannot call number 730. which Is an abbreviated number for 45730. The engineer recently configured a translation pattern In Cisco UCM. The newly configured translation pattern of 7XX prefixes the digits 45. The engineer uses DNA to troubleshoot the issue. What is the reason for this problem?
An engineer is implementing survivability for a collaboration environment. The environment is utilizing a centralized Cisco UCM at the headquarters and Cisco IOS-XE gateways in the remote branches. Which action must the engineer take to enable both shared lines and B-ACD for SIP branch phones during a WAN outage?
A network engineer designs a new dial plan and wants to block a certain range of numbers (8135100 through 8135105). What is the most specific route pattern that can be configured to block only the numbers in this range?
An engineer is configuring a call park feature in Cisco Unified Communications Manager Express. Which command does the engineer use to ensure that the call is reverted to the user after 60 seconds?
Cisco SIP IP telephony is implemented on two floors of your company. Afterward, users report intermittent voice issues in calls established between floors. All calls are established, and sometimes they work well, but sometimes there is one-way audio or no audio. You determine that there is a firewall between the floors, and the administrator reports that it is allowing SIP signaling and UDP ports from 20000 to 22000 bidirectionally. What are two possible solutions? (Choose two.)
An administrator is configuring a SIP trunk to an ITSP. The SIP connection will traverse from a Cisco UCM to the ISTP through a Cisco Unified Border Element. The ITSP has indicated that they require an in-band method for DTMF. Which command on the outbound dial-peer to the ITSP will meet this requirement?
An administrator configured Extension Mobility on Cisco UCM. Users report that logins are successful, but the phones do not have an Extension Mobility option after logging in. The administrator verified that Extension Mobility is enabled on the devices and that the log-out profile is valid. Which action must the administrator take to resolve the issue?

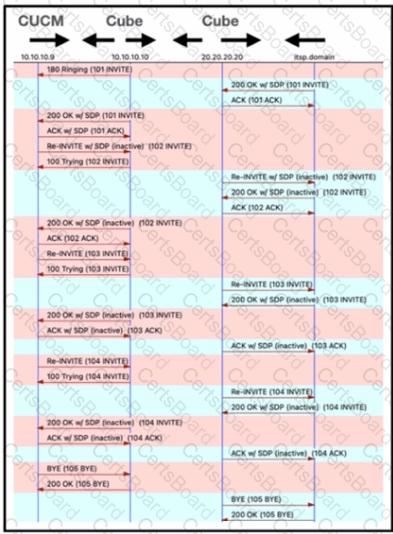

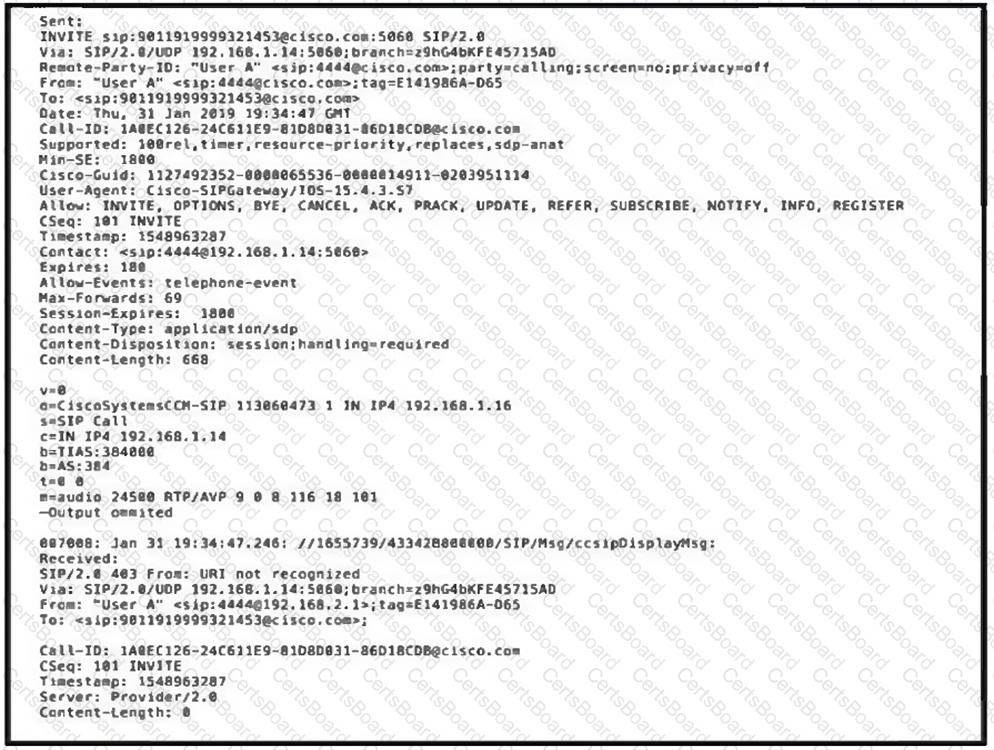

Refer to the exhibit.
Users report that when they dial the emergency number 9911 from any internal phone, it takes a long time to connect with the emergency operator. Which action resolves this issue?
TESTED 30 Oct 2025
