350-401 Exam Dumps - Cisco CCNP Enterprise Questions and Answers

Solution: -

Solution:

R2

R3

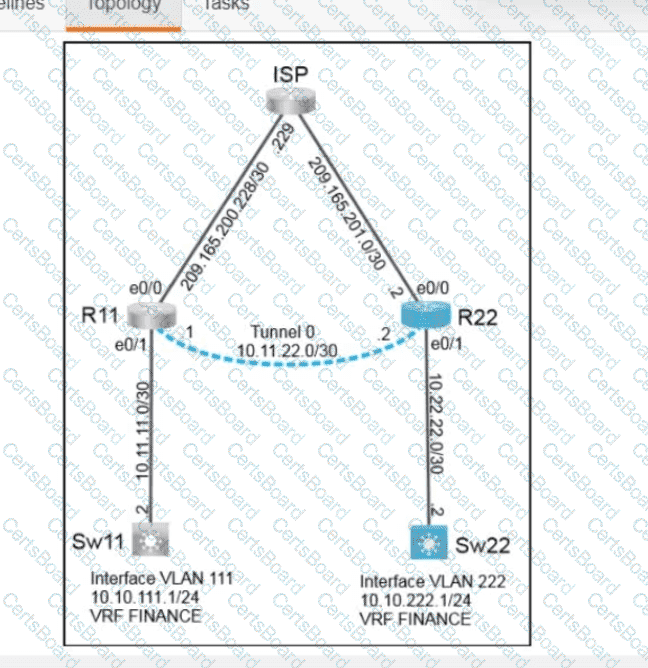

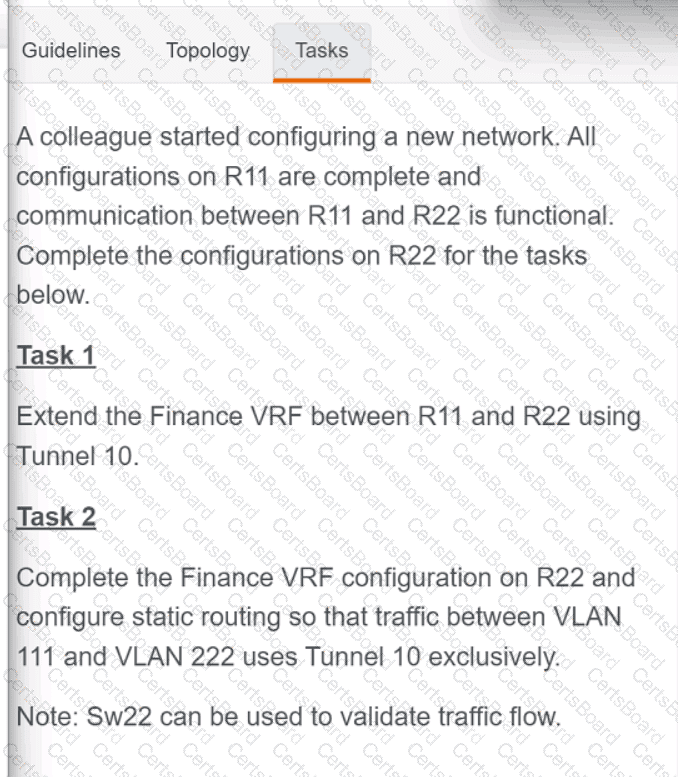

Solution:

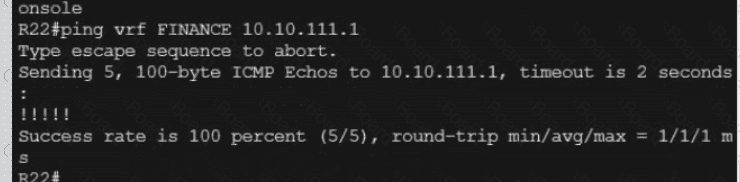

R22

config t

int tunn0

vrf forwarding FINANCE

ip add 10.11.22.2 255.255.255.0

tunn so e0/0

tunn dest 209.165.200.230

no shut

int et0/1

vrf forward FINANCE

ip add 10.22.22.1 255.255.255.252

no shut

ip route vrf FINANCE 10.10.111.0 255.255.255.0 tunn0

wr

Solution:

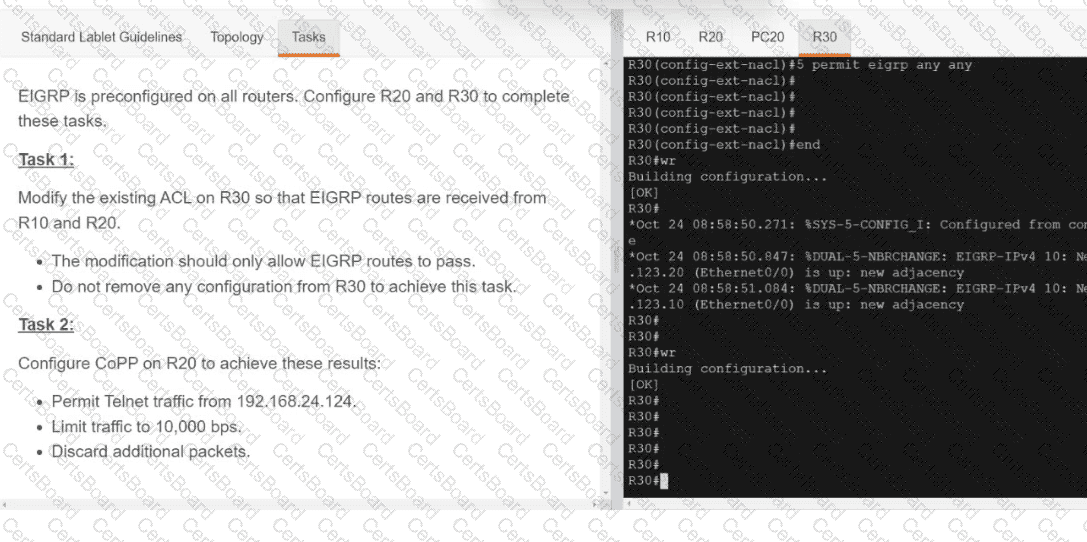

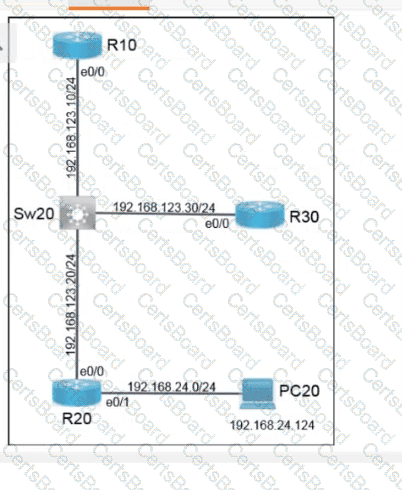

R30

show ip access-list

config t

ip access-list extended 120

5 permit eigrp any any

wr

R20

config t

ip access-list extended 100

permit tcp 192.168.25.0 0.0.0.255 any eq 23

class-map match-any TELNET

match access-group 100

policy-map CoPP

class TELNET

police 10000 conform-action transmit exceed-action drop

control-plane

service-policy input CoPP

wr

Solution:

R1

config t

flow record NetFlow-Record

match ipv4 source address

match ipv4 destination address

collect country bytes

flow exporter NetFlow-Exporter

destination 10.10.1.10

transport udp 9996

flow monitor NetFlow-Monitor

record NetFlow-Record

exporter NetFlow-Exporter

exit

int et0/0

ip flow monitor NetFlow-Monitor input

ip sla 1

http get http://10.10.1.100

frequency 600

exit

ip sla schedule 1 start-time now

wr

Sw1

config t

monitor session 2 source int e0/0

monitor session 2 source int et0/2

monitor session 2 destination interface e1/0

wr

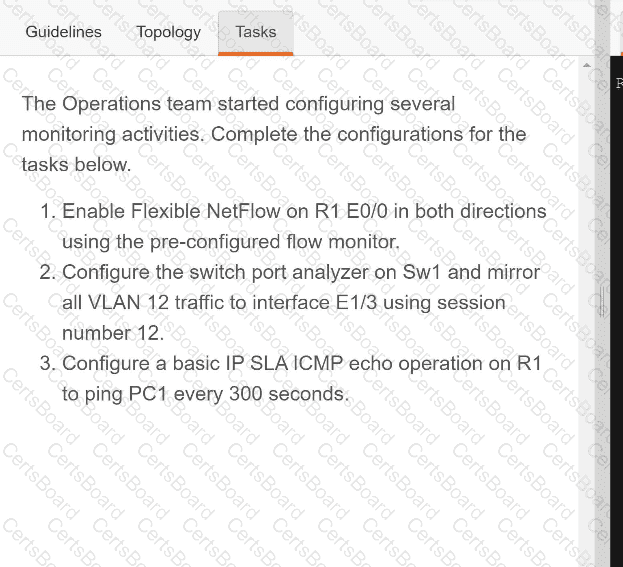

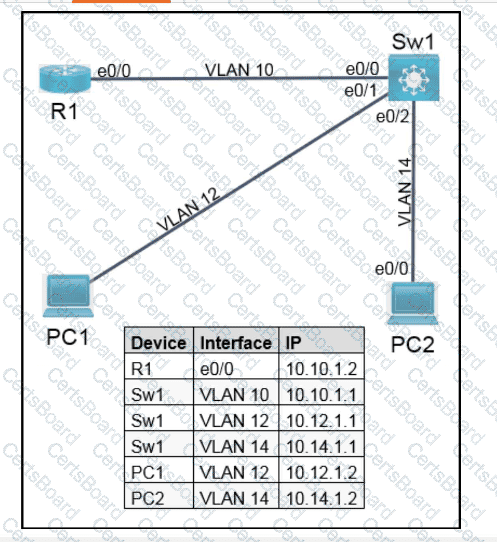

Solution:

R1

Config t

Int et0/0

Ip flow monitor Monitor-R1Flow input

Ip flow monitor Monitor-R1Flow output

Exit

Ip sla 1

Icmp-echo 10.12.1.2

Freq 300

Ip sla schedule 1 life foreve start-time now

Sw1

Config t

Monitor session 12 source vlan 12

Monitor session 12 destination interface et1/3

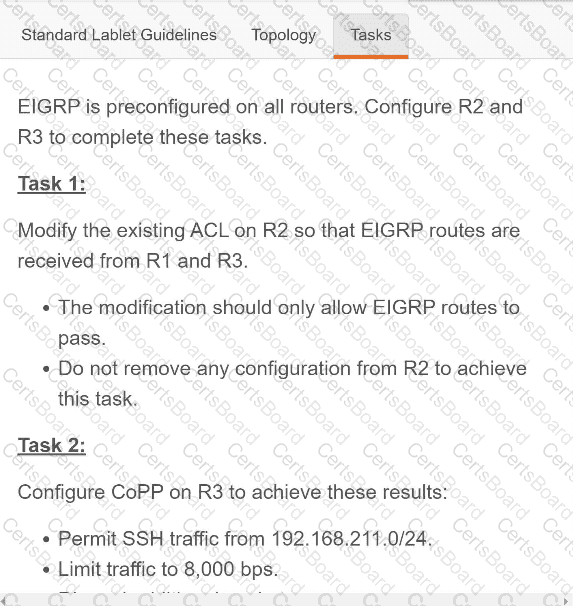

Solution:

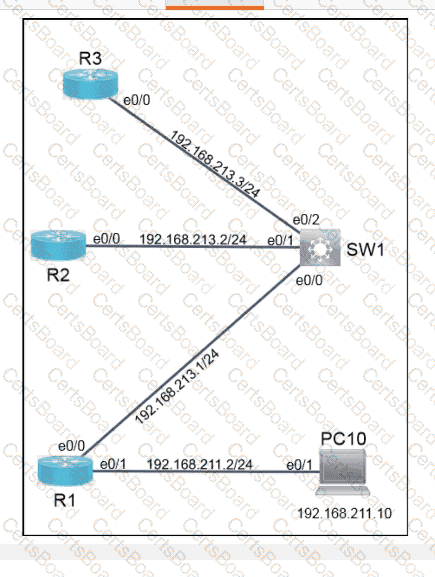

R2

show ip access-list

config t

ip access-list extended 151

5 permit eigrp any any

wr

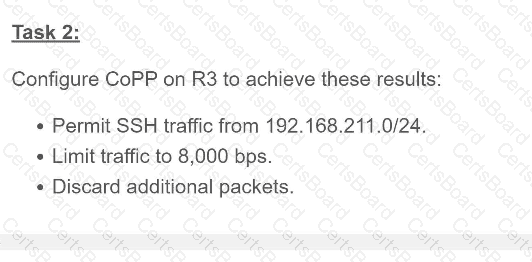

R3

config t

ip access-list extended 100

permit tcp 192.168.211.0 0.0.0.255 any eq 22

class-map match-any SSH

match access-group 100

policy-map CoPP

class SSH

police 8000 conform-action transmit exceed-action drop

control-plane

service-policy input CoPP

wr

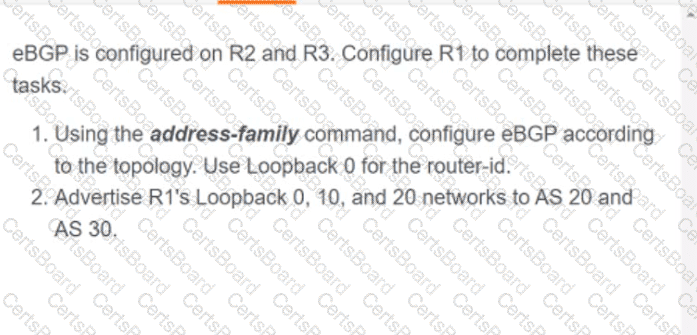

Solution:

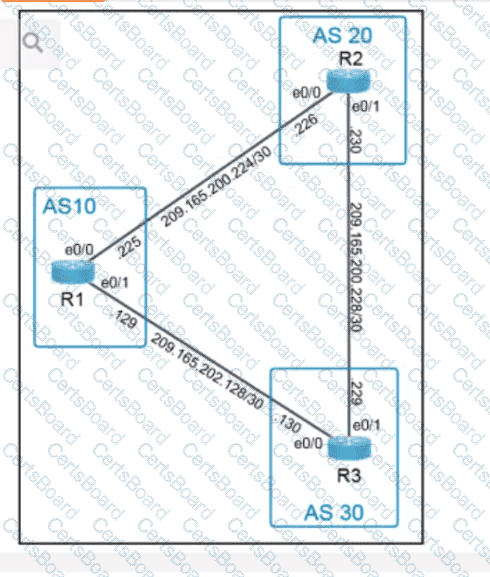

router bgp 10

bgp router-id 10.1.1.111

no bgp defa ipv4-unicast

nei 209.165.200.226 remote-as 20

nei 209.165.202.130 remote-as 30

address-family ipv4

neigh 209.165.200.226 activate

neigh 209.165.202.130 activate

network 10.1.1.10 mask 255.255.255.255

network 209.165.201.10 mask 255.255.255.255

network 209.165.201.20 mask 255.255.255.255

wr

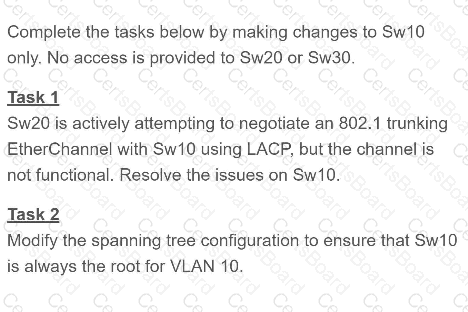

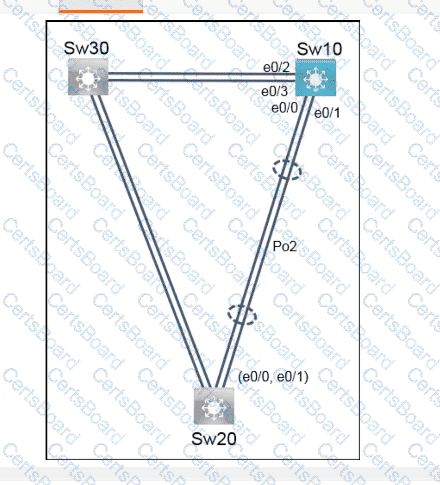

Solution:

Sw10

config t

no int po2

int et0/0

channel-group 2 mode active

no shut

spanning-tree vlan 10a pri 0

wr

Solution:

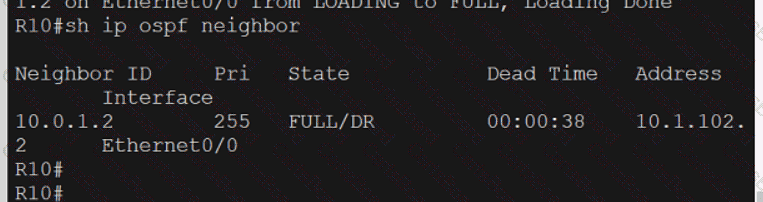

VERIFICATION: -

OR
