220-1101 Exam Dumps - CompTIA A+ Questions and Answers

A network jack faceplate is a device that covers and protects the network jack or outlet on a wall or a floor. A network jack or outlet is a physical interface that allows a network cable, such as an Ethernet cable, to be plugged into a network device, such as a computer or a printer. A network jack faceplate usually has one or more ports that correspond to different types of network cables, such as RJ-45, RJ-11, or coaxial.

A label on a network jack faceplate should refer to the patch panel port that the network jack or outlet is connected to. A patch panel is a device that connects multiple network cables in an organized and convenient way. A patch panel has a number of ports that correspond to different cables, such as Ethernet, coaxial, or fiber-optic cables. A patch panel can help simplify the wiring and management of a network, as well as provide flexibility and scalability for adding or changing network devices.

By labeling the network jack faceplate with the patch panel port, the network technician can easily identify and trace the cable that is connected to the network jack or outlet. This can help to troubleshoot and resolve network issues, such as connectivity, performance, or configuration problems. It can also help to avoid confusion or errors when installing or modifying network cables.

The most likely issue that the technician will encounter is A. Corrupt job in print spooler.

A corrupt job in the print spooler is a common problem that can cause a printer to stop printing or print slowly. The print spooler is a service that manages the print queue, which is a list of documents that are waiting to be printed. Sometimes, a document in the print queue can become corrupted or incompatible with the printer, and prevent other documents from being printed. This can happen due to various reasons, such as power outage, network interruption, driver mismatch, virus infection, etc12.

To troubleshoot and resolve this issue, the technician can use the diagnostic tool in the printer’s administrator menu, which is a feature that allows the technician to access and configure various settings and options of the printer. The diagnostic tool can help the technician identify and delete the corrupt job in the print spooler, and restart the print service. The technician can also use the diagnostic tool to check the printer’s status, error messages, firmware updates, network settings, and other information that can help with the troubleshooting process34.

The other options are less likely to be encountered by the technician, as they are not related to the printer’s heavy use or the diagnostic tool. Insufficient space in the printer is an issue that can occur when the printer’s memory or storage is full, and it can cause the printer to print slowly or incompletely. However, this issue can be easily resolved by clearing the printer’s memory or storage, or adding more memory or storage to the printer12. Network connectivity issues are problems that can affect the communication between the printer and the network, and they can cause the printer to be offline or unreachable. However, these issues can be resolved by checking and fixing the physical or wireless connection, the network configuration, the firewall settings, and the printer’s IP address12. Improperly installed drivers are issues that can affect the compatibility and functionality of the printer, and they can cause the printer to print incorrectly or not at all. However, these issues can be resolved by updating, reinstalling, or rolling back the printer’s drivers, or by using the correct drivers for the printer’s model and operating system12.

A sandbox is a virtual environment that allows testing or running applications without affecting the main system. A sandbox can isolate the applications from the rest of the system, preventing any unwanted changes, errors, or security risks. A sandbox can also be easily reset to the initial state, discarding any modifications or data generated by the applications12.

A sandbox is a useful tool for stress testing multiple applications, as it can:

•Simulate different scenarios and conditions for the applications, such as high load, low memory, network latency, etc.

•Monitor and measure the performance, stability, and resource consumption of the applications under stress.

•Compare and analyze the results of different applications or different versions of the same application.

•Identify and fix any bugs, errors, or vulnerabilities in the applications before deploying them to the main system.

The user should check the display settings on the computer and set them to extend/duplicate. This will allow the computer to send the video signal to both the laptop screen and the projector. If the display settings are set to only show on one screen, then the projector may not detect any source. According to the CompTIA Core1 objectives, one of the common display issues is no image on screen. A troubleshooting guide for projectors also suggests checking the display settings as a possible solution for no source found error.

 The message “The amount of system memory has changed” indicates that there is a problem with the random access memory (RAM) modules in the computer. The RAM may be loose, faulty, or incompatible with the motherboard or other components. The GPU, HDD, and CPU are not directly related to system memory and would not cause this message to appear.

The Official CompTIA® A+® Core 1 and Core 2 Student Guide (Exams 220-1001 and 220-1002) | 193 Protected content. If you encounter an error that indicates unauthorized content or an HDCP error: • DVI, HDMI, DisplayPort, and Thunderbolt all provide support for the Digital Rights Management (DRM) mechanism High-bandwidth Digital Content Protection (HDCP). HDCP allows a content source (such as a Blu-ray disc) to disable itself if the display adapter and monitor and/or speaker system do not support HDCP and fail to authenticate themselves with the playback source. There have been various iterations of HDCP (at time of writing the current version is 2.2) and backward-compatibility can be problematic as authentication may fail between devices that support different versions of the standard.

A captive portal is a web page that requires users to agree to terms and conditions, enter credentials, or provide payment information before accessing a wireless network. Some devices, such as streaming media devices, may not have a web browser or a user interface to interact with the captive portal. One possible solution is to connect to the hotspot on the user’s device, such as a smartphone or a tablet, and use it as a bridge to access the internet through the wireless network. The user’s device can authenticate with the captive portal and share its internet connection with other devices via Wi-Fi, Bluetooth, or USB. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-1-content-guide (page 12)

The most likely cause of the issue is that the page orientation is incorrect. The printer may be set to print labels in a different orientation than the orientation of the label sheet1.

An overheating processor is the most likely cause of a computer that has a loud system fan and randomly freezes and reboots. A processor generates heat when it performs calculations, and if the heat is not dissipated properly, it can damage the processor or cause it to malfunction. A loud system fan indicates that the fan is working harder to cool down the processor, but it may not be enough to prevent overheating. A computer that freezes and reboots randomly is a common symptom of an overheating processor, as the system tries to protect itself from further damage by shutting down or restarting.

The other options are not as likely to cause these issues. A failing hard drive may cause data loss, corruption, or slow performance, but it does not affect the system fan or the processor temperature. A defective power supply may cause the computer to shut down unexpectedly, but it does not cause the system fan to be loud or the processor to overheat. Incompatible hardware may cause the computer to fail to boot, display errors, or crash, but it does not cause the system fan to be loud or the processor to overheat.

To troubleshoot and resolve an overheating processor issue, the technician should check and clean the air vents, provide proper ventilation, apply thermal paste, replace the fan or the heat sink, or upgrade the processor if necessary. The technician should also update the BIOS and the device drivers, adjust the power settings, and monitor the system temperature using diagnostic tools.

A load balancer is a device or software that distributes network traffic across multiple servers or resources, such as web server farms, to optimize performance, reliability, and scalability. A load balancer controls the flow of users connecting to web server farms and prevents overutilization on any individual server by using various algorithms, such as round robin, least connections, or weighted distribution. A load balancer can also provide health checks, failover, caching, compression, encryption, and other features to enhance the user experience and security.

Calibration is the process of adjusting the printer settings to ensure that the printed output matches the original document. Calibration can fix issues such as misaligned images, color accuracy, and print quality. References: [Printer Calibration]

Memory modules are physical components that store data and instructions for the computer to access and process. Memory modules have different specifications and features, such as type, speed, capacity, voltage, and form factor. These specifications and features must be compatible with the motherboard and the processor of the computer, otherwise the memory modules may not work properly or cause errors.

In this scenario, the technician is working to replace a single DDR3 RAM module on a laptop that has two occupied slots. DDR3 stands for Double Data Rate 3, and it is a type of memory technology that offers faster performance and lower power consumption than its predecessors. DDR3 RAM modules have different variants, such as DDR3L, DDR3U, or DDR3R, which have different voltage requirements. For example, DDR3L operates at 1.35V, DDR3U operates at 1.25V, and DDR3R operates at 1.5V.

When the technician tries to turn on the laptop, the computer starts beeping and does not pass POST. POST stands for Power-On Self-Test, and it is a process that checks the hardware components and functionality of the computer before loading the operating system. If POST detects an error or a failure, it may produce a series of beeps or codes to indicate the problem. The number and pattern of beeps or codes may vary depending on the manufacturer or model of the computer.

The technician double-checks the newly installed RAM and notices a motherboard message indicating low voltage. This means that the motherboard is not receiving enough power from the memory module to operate normally. This could indicate that the memory module is not compatible with the motherboard or the processor, or that it is defective or damaged. The most likely cause of this issue is that the technician installed an unsupported memory module that has a lower voltage than what the motherboard or the processor requires.

To resolve this issue, the technician should remove the newly installed RAM module and replace it with a compatible one that has the same voltage as the existing ones. The technician should also check the specifications and features of the motherboard and the processor to ensure that they support the type, speed, capacity, and form factor of the memory modules. The technician should also follow proper safety precautions when handling memory modules, such as wearing an anti-static wrist strap, avoiding physical damage or static discharge, and aligning the notches correctly.

Loading the hard disk drive (HDD) drivers using a flash drive is the most likely action that can fix the issue of a computer not being able to find the hard drive during an OS installation from Windows 7 to Windows 10. The HDD may have a different interface or controller than what Windows 10 supports by default, such as SATA or RAID, which would require loading additional drivers during the installation process. The technician can use a flash drive to load the drivers from another device or source. Changing the partition to MBR, upgrading the RAM modules, or replacing the hard drive are not likely to fix the issue, as they are not related to the HDD drivers

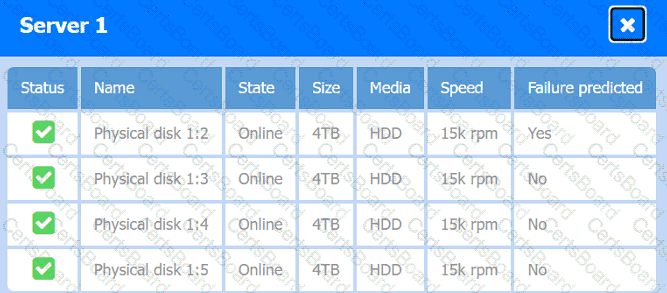

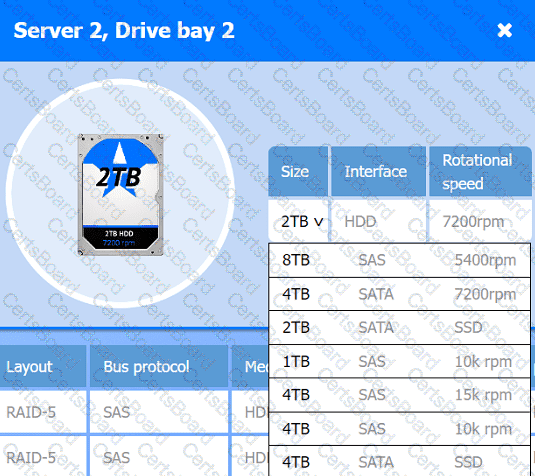

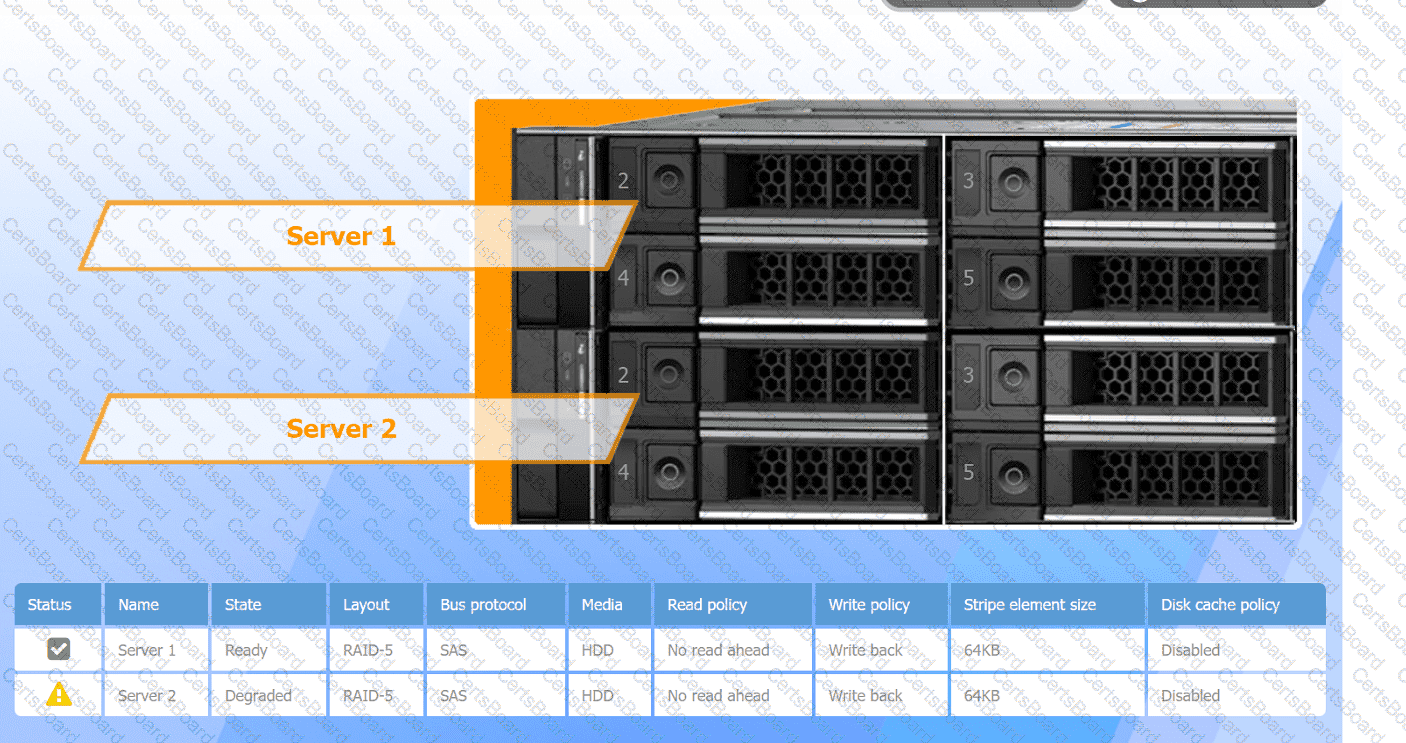

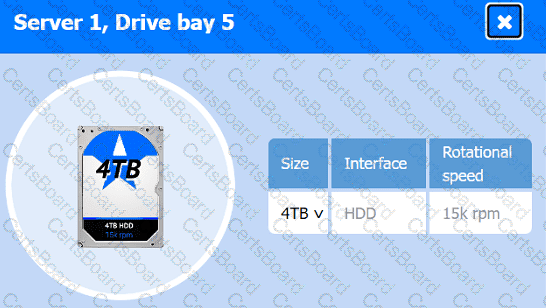

RAID stands for Redundant Array of Independent Disks, which is a technology that combines multiple disks into a logical unit to improve performance, reliability, or both. There are different types of RAID levels that use different methods of data distribution and redundancy.

RAID 0 is a level that stripes data across multiple disks without any redundancy. It offers the highest performance but no fault tolerance. If any disk fails, the entire array is lost.

RAID 1 is a level that mirrors data across two disks. It offers the lowest performance but the highest fault tolerance. It can survive the failure of one disk.

RAID 5 is a level that stripes data across multiple disks with parity information. It offers a balance between performance and fault tolerance. It can survive the failure of one disk, but not two or more disks.

RAID 10 is a level that combines RAID 1 and RAID 0. It creates a striped array of mirrored pairs. It offers high performance and high fault tolerance. It can survive the failure of one disk in each pair, or multiple disks in different pairs.

Therefore, if the server administrator wants to rebuild the array to withstand a potential multidrive failure in the future, RAID 10 is the most likely choice.

The next step that the technician should take after replacing the battery in the phone is to check the device for malware. Malware is a malicious software that can infect the phone and cause various problems, such as overheating, battery drain, data theft, pop-up ads, or performance slowdowns. Malware can enter the phone through various sources, such as downloading apps from untrusted sources, clicking on suspicious links or attachments, or connecting to insecure Wi-Fi networks.

To check the device for malware, the technician can use a reputable antivirus or anti-malware app, such as the ones found in the web search results123. The technician can follow these steps:

Download and install the antivirus or anti-malware app from a trusted source, such as the Google Play Store or the Apple App Store.

Launch the app and grant it the necessary permissions to scan the device.

Run a full scan of the device and wait for the results.

If the app detects any malware, follow the app’s instructions to remove or quarantine it.

Restart the device and check if the overheating and battery drain issues are resolved.

Other steps, such as checking the device for updates, checking the device for liquid damage, or checking the device’s charging adapter, may not be relevant or effective for solving the overheating and battery drain issues caused by malware. Checking the device for updates may improve the security and performance of the device, but it may not remove the existing malware. Checking the device for liquid damage may reveal physical damage to the device, but it may not explain the constant overheating and battery drain. Checking the device’s charging adapter may ensure the proper charging of the device, but it may not affect the device’s temperature or battery life when it is not plugged in.

The best way to meet the user’s requirement is C. Connect everything to a compatible docking station.

A docking station is a device that allows a laptop to connect to multiple peripherals and accessories with a single connection. A docking station usually has ports for USB, HDMI, audio, Ethernet, and power, as well as slots for expansion cards. A docking station can enhance the functionality and convenience of a laptop by providing a desktop-like experience1. A compatible docking station is one that matches the laptop’s model, brand, and connector type2.

A port replicator is a simpler device that only replicates the ports of the laptop, such as USB and HDMI, without providing additional features or power. A port replicator can also allow a laptop to connect to multiple peripherals and accessories with a single connection, but it does not offer the same benefits as a docking station1.

Directly connecting all accessories to the laptop would not meet the user’s requirement, as it would be cumbersome and time-consuming to pack up and leave if needed. The user would have to disconnect and reconnect multiple cables every time they want to use or move the laptop. This option would also limit the number of accessories that can be connected, as the laptop may not have enough ports for all of them.

Providing the user with a second laptop would not meet the user’s requirement, as it would be expensive and impractical. The user would have to transfer data and settings between the two laptops, and keep them both updated and secure. This option would also create confusion and redundancy, as the user would have two identical devices.

Providing the user with a USB hub would not meet the user’s requirement, as it would only allow the user to connect more USB devices to the laptop. A USB hub is a device that splits one USB port into multiple ports, but it does not support other types of connections, such as HDMI or audio. A USB hub would also require an external power source or drain the laptop’s battery faster. This option would not help the user connect the HDMI external monitor or the 3.5mm headset.

The most likely answer is C. Fuser.

A fuser is a component in a laser printer that uses heat and pressure to fuse the toner powder onto the paper. If the fuser is damaged or worn out, it can cause humming and grinding noises, as well as ghost images on the printouts. Ghost images are faint copies of previous images that appear on the same page. They are caused by the fuser not heating the toner properly, or by the toner sticking to the fuser roller and transferring to the next page12.

To fix this problem, you should replace the fuser unit with a new one. You can check your printer manual for instructions on how to remove and install the fuser unit. You can also use a diagnostic ruler to measure the distance between the ghost images and determine if the fuser is the source of the problem2. If the ghost images are far apart (between 4cm and 5cm), then the fuser is likely to be faulty.

Shared resources is the concept that allows several websites from different companies to be housed on the same virtual server. A virtual server is a software-based server that runs on a physical server and can host multiple virtual machines (VMs). Each VM can run a different operating system and application, such as a website, and have its own allocated resources, such as CPU, memory, disk space, and network bandwidth. However, the VMs share the underlying hardware resources of the physical server, which reduces the cost and complexity of maintaining separate servers for each website. This also enables rapid scalability, as new VMs can be created or deleted as needed.

One of the methods to host multiple websites on the same virtual server is to use virtual hosts. Virtual hosts are a feature of web servers, such as Apache, that allow the web server to serve different websites based on the domain name or IP address requested by the client. For example, a web server can host two websites, a.example.com and b.example.com, on the same virtual server and the same port (such as 80 or 443), by using virtual hosts to map each domain name to a different document root directory. The web server will then deliver the content of the corresponding website to the client based on the domain name in the HTTP request header.

HDD fragmentation is a condition where the data on a hard disk drive (HDD) is not stored in contiguous clusters, but scattered across different physical locations on the disk. This happens when files are created, modified, or deleted over time, leaving gaps and fragments of data on the disk. HDD fragmentation can affect the performance of the PC, especially when accessing large files that require more disk operations to read or write12.

According to some web search results123, some signs and symptoms of a heavily fragmented HDD are:

•Longer load times for files and programs

•Graphics-heavy apps and games take too long to load new windows or process new environments

•Reduced disk space and efficiency

•Increased disk noise and temperature

•Accelerated disk wear and failure

To fix this issue, the user can use a tool called Disk Defragmenter, which is built-in in Windows. Disk Defragmenter rearranges the fragmented data on the HDD so that it is stored in contiguous clusters, improving the disk performance and reliability1. Disk Defragmenter can run on a schedule or manually by following these steps1:

•Open Disk Defragmenter by clicking the Start button. In the search box, type Disk Defragmenter, and then, in the list of results, click Disk Defragmenter.

•Under Current status, select the disk you want to defragment.

•To determine if the disk needs to be defragmented or not, click Analyze disk. If you’re prompted for an administrator password or confirmation, type the password or provide confirmation.

•Once Windows is finished analyzing the disk, you can check the percentage of fragmentation on the disk in the Last Run column. If the number is above 10%, you should defragment the disk.

•Click Defragment disk. If you’re prompted for an administrator password or confirmation, type the password or provide confirmation.

•Disk Defragmenter might take from several minutes to a few hours to finish, depending on the size and degree of fragmentation of your hard disk. You can still use your computer during the defragmentation process.
