350-701 Exam Dumps - Cisco CCNP Security Questions and Answers

FlexVPN and DMVPN are both Cisco technologies that use point-to-point GRE tunnels to create dynamic VPN networks. However, they differ in some aspects, such as:

FlexVPN is a newer solution that requires newer hardware and IOS versions, while DMVPN is more widely supported on older devices1.

FlexVPN is based on IKEv2, which is a more robust and efficient protocol than IKEv1, which is used by DMVPN (although DMVPN can also use IKEv2)2.

FlexVPN uses static or virtual access interfaces for GRE tunnels, while DMVPN uses a single multipoint GRE interface. This allows more flexibility and visibility for FlexVPN tunnels2.

FlexVPN does not require NHRP registration for spokes to communicate with the hub, while DMVPN does. This simplifies the configuration and reduces the overhead of NHRP3.

FlexVPN has only one standard mode of operation, while DMVPN has three phases with different characteristics and configurations2.

References := 1: what is the difference between dmvpn and flexvpn 2: Cisco FlexVPN DMVPN, Part 1 - Overview and Design 3: DMVPN to FlexVPN Soft Migration Configuration Example

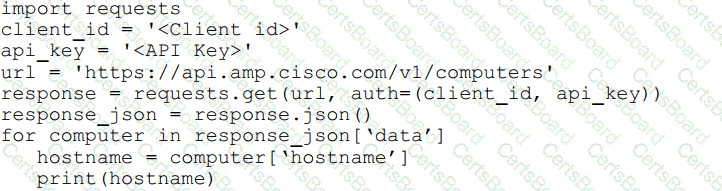

The Python script in the exhibit uses the Cisco AMP for Endpoints API to get information about the computers in the deployment. It imports the requests library, which allows it to make HTTP requests. It then defines three variables: client_id, api_key, and url. These are used to authenticate and access the API endpoint. The url is set to ‘1’, which returns a list of computers in JSON format. The script then makes a GET request using the requests.get() method, passing the url and the authentication details as parameters. The response from the API is stored in the response variable, and converted to JSON using the response.json() method. The script then loops over each computer in the ‘data’ field of the JSON response, using a for loop. Inside the loop, it extracts the hostname of each computer using the ‘hostname’ key, and prints it using the print() function. Therefore, the script will pull all computer hostnames and print them, which is option C. References:

Overview of the Cisco AMP for Endpoints API

Secure Endpoint API - Cisco DevNet

Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0

Explanation

Ping of Death (PoD) is a type of Denial of Service (DoS) attack in which an attacker attempts to crash,

destabilize, or freeze the targeted computer or service by sending malformed or oversized packets using a simple ping command.

A correctly-formed ping packet is typically 56 bytes in size, or 64 bytes when the ICMP header is considered,

and 84 including Internet Protocol version 4 header. However, any IPv4 packet (including pings) may be as large as 65,535 bytes. Some computer systems were never designed to properly handle a ping packet larger than the maximum packet size because it violates the Internet Protocol documented

Like other large but well-formed packets, a ping of death is fragmented into groups of 8 octets before

transmission. However, when the target computer reassembles the malformed packet, a buffer overflow can occur, causing a system crash and potentially allowing the injection of malicious code.

A SQL injection attack is a type of attack that exploits a vulnerability in a web application that uses user-supplied data to construct SQL statements that interact with a database. By inserting malicious commands into the database, an attacker can execute arbitrary SQL queries or commands on the database server, which may result in data theft, data manipulation, or command execution. Machine 1 is vulnerable to SQL injection because it does not properly validate or sanitize the user input before using it in a SQL statement. Therefore, inserting malicious commands into the database would allow the attacker to gain access to machine 1.

A buffer overflow attack is a type of attack that exploits a vulnerability in a program that does not check the boundaries of a buffer (a temporary storage area for data) before copying data into it. By overflowing the buffer’s memory, an attacker can overwrite adjacent memory locations, which may result in corrupting data, crashing the program, or executing malicious code. Machine 2 is vulnerable to buffer overflow because it does not properly handle the size or length of the data that it receives from the user or another source. Therefore, overflowing the buffer’s memory would allow the attacker to gain access to machine 2.

Sniffing the packets between the two hosts is a passive attack that involves capturing and analyzing the network traffic that flows between the two machines. This attack may reveal sensitive information, such as credentials, session tokens, or database queries, but it does not directly allow the attacker to gain access to either machine. Sending continuous pings is a type of denial-of-service attack that involves flooding the target machine with ICMP echo request packets, which may consume its network bandwidth or processing resources, but it does not directly allow the attacker to gain access to either machine. Therefore, neither sniffing the packets nor sending continuous pings would allow the attacker to gain access to machine 1 but not machine 2. References :=

Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0, Module 3: Web Security, SQL Injection Attacks

Understanding SQL Injection - Cisco, SQL Injection Explained

Buffer Overflow and SQL Injection: To Remotely Attack and … - Springer, Buffer Overflow and SQL Injection Attacks

EPP and EDR are two types of endpoint security solutions that have different goals and capabilities. EPP stands for endpoint protection platform, which is a suite of technologies that work together to prevent, detect, and remediate security threats on endpoints. EPP solutions use techniques such as antivirus, firewall, application control, and patch management to block known and unknown malware and malicious activity. EDR stands for endpoint detection and response, which is a solution that provides real-time visibility into endpoint activities and enables security teams to detect, investigate, and respond to advanced threats that may have bypassed EPP defenses. EDR solutions use techniques such as behavioral analysis, threat intelligence, and incident response to flag offending files at the first sign of malicious behavior, contain and isolate compromised endpoints, and remediate the damage caused by the attack. Therefore, the correct answer is D, as having an EDR solution gives an engineer the capability to flag offending files at the first sign of malicious behavior. The other options are incorrect because:

A is false, as EPP focuses primarily on threats that have evaded front-line defenses that entered the environment, not EDR.

B is false, as having an EPP solution allows an engineer to detect, investigate, and remediate modern threats, not EDR.

C is false, as EDR focuses on detection and response at the endpoint level, not prevention at the perimeter. References:

EPP vs. EDR: Why You Need Both - CrowdStrike

EDR vs EPP: What is the Difference? - Exabeam

EPP vs. EDR: What Matters More, Prevention or Response? - Cynet

Explanation

Explanation

The ASA and ASASM implementations of NetFlow Secure Event Logging (NSEL) provide the following major functions:

…

– Delays the export of flow-create events.

 EPP solutions solely focus on the perimeter of the network, which is the boundary between the internal and external networks. The perimeter is where most of the endpoints, such as laptops, desktops, mobile devices, and IoT devices, are located and connected to the network. EPP solutions aim to prevent, detect, and remediate security threats on these endpoints by using technologies such as antivirus, data encryption, and data loss prevention. EPP solutions rely on signatures and other indicators of intrusion by known threats to block malicious activity and malware on the endpoints12.

EDR solutions do not focus on the perimeter, but rather on the entire network, including the core and the East-West gateways. The core is the central part of the network that connects different segments and provides high-speed data transmission. The East-West gateways are the points of communication between different segments within the network, such as between different data centers or cloud environments. EDR solutions provide continuous and comprehensive visibility into endpoint activities across the network by using threat hunting tools for behavior-based endpoint threat detection. EDR solutions monitor and record endpoint data, detect anomalies and malicious behavior, and respond to threats that EPP and other security tools did not catch. EDR solutions also enable security teams to proactively investigate and contain incidents by using incident data search, alert triage, threat validation, and malicious activity blocking134.

References := 1: EPP vs. EDR: Why You Need Both - CrowdStrike 2: Comparing endpoint security: EPP vs. EDR vs. XDR | Infosec 3: EDR vs EPP: What is the Difference? - Exabeam 4: EDR vs EPP: Key Features, Differences, and How They Work Together

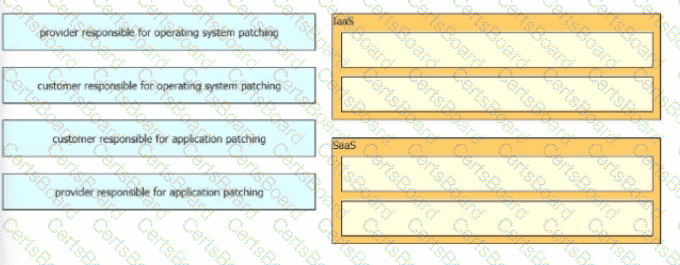

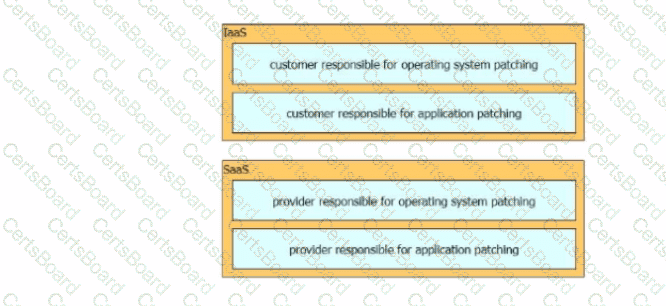

The cloud security shared responsibility model is a way of describing how the security tasks and obligations are divided between the cloud service provider (CSP) and the customer, depending on the type of cloud service model used. The cloud service models are:

Software as a Service (SaaS): The CSP provides and manages the entire software stack, including the applications, data, runtime, middleware, operating system, virtualization, servers, storage, and networking. The customer only needs to access the software through a web browser or an application. The customer is responsible for managing their own data and identities, as well as configuring the security settings of the software. The CSP is responsible for everything else, including patching the operating system and the applications12

Platform as a Service (PaaS): The CSP provides and manages the platform layer, including the runtime, middleware, operating system, virtualization, servers, storage, and networking. The customer can deploy and run their own applications and data on the platform, using the tools and languages supported by the CSP. The customer is responsible for managing their own applications and data, as well as configuring the security settings of the platform. The CSP is responsible for patching the operating system and the middleware12

Infrastructure as a Service (IaaS): The CSP provides and manages the infrastructure layer, including the virtualization, servers, storage, and networking. The customer can provision and use virtual machines, containers, or bare metal servers, and install their own operating system, middleware, applications, and data. The customer is responsible for managing and patching their own operating system, middleware, applications, and data, as well as configuring the security settings of the infrastructure. The CSP is responsible for the physical security and availability of the infrastructure12

References := 1: Shared responsibility in the cloud - Microsoft Azure 2: Cloud security shared responsibility model - NCSC

The Cisco WSA can enforce bandwidth restrictions for web applications by using the Application Visibility and Control (AVC) engine. The AVC engine allows the WSA to identify and control application activity on the network, and to apply bandwidth limits to certain application types or individual applications. The WSA dynamically creates a scavenger class QoS policy and applies it to each client that connects through the WSA. The scavenger class QoS policy assigns a low priority to the application traffic and limits the bandwidth usage based on the configured settings. This way, the WSA can prevent congestion and ensure fair allocation of bandwidth among different applications and users. References:

User Guide for AsyncOS 11.8 for Cisco Web Security Appliances - GD (General Deployment) - Managing Access to Web Applications

WSA - limit bandwidth - Cisco Community

Cross-site scripting (XSS) is a web security vulnerability that allows an attacker to inject malicious code into a web page that is viewed by other users. XSS can compromise the user’s interaction with the web application, steal sensitive data, perform unauthorized actions, and more. To prevent XSS, web developers need to apply various defensive techniques to ensure that user-supplied data is not interpreted as code by the browser. Two of these techniques are:

Incorporate contextual output encoding/escaping: This means that any user-supplied data that is displayed on the web page should be properly encoded or escaped according to the context where it appears. For example, if the data is inserted into an HTML attribute, it should be HTML attribute encoded; if the data is inserted into a JavaScript string, it should be JavaScript string encoded; and so on. This prevents the data from breaking out of its intended context and being executed as code by the browser. Output encoding should be done by using a reliable library or framework that supports different contexts and encodings.

Run untrusted HTML input through an HTML sanitization engine: This means that any user-supplied data that is intended to contain HTML markup should be filtered and validated by a sanitization engine that removes or escapes any potentially dangerous elements, attributes, or scripts. This prevents the attacker from injecting malicious HTML code that can execute scripts, load external resources, redirect the user, or perform other malicious actions. HTML sanitization should be done by using a well-tested and maintained library or framework that follows the best practices and standards for HTML filtering.

References :=

[Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0], Module 5: Securing the Cloud, Lesson 5.2: Web Application Security, Topic 5.2.2: Cross-Site Scripting (XSS)

Cross Site Scripting Prevention Cheat Sheet - OWASP

What is cross-site scripting (XSS) and how to prevent it? - Web Security Academy

Explanation

Explanation

DevSecOps (development, security, and operations) is a concept used in recent years to describe how to move

security activities to the start of the development life cycle and have built-in security practices in the continuous

integration/continuous deployment (CI/CD) pipeline. Thus minimizing vulnerabilities and bringing security closer

to IT and business objectives.

Three key things make a real DevSecOps environment:

+ Security testing is done by the development team.

+ Issues found during that testing is managed by the development team.

+ Fixing those issues stays within the development team.

 Cisco ISE is a solution that allows an administrator to provision, monitor, and secure mobile devices on Windows and Mac computers from a centralized dashboard. Cisco ISE integrates with Mobile Device Management (MDM) servers to provide necessary insight into the posture of mobile devices and enforce network access policies. Cisco ISE can also perform device registration, remediation, and periodic compliance checks on mobile devices. Cisco ISE can also issue remote actions on the device through the MDM server, such as full wipe, corporate wipe, and PIN lock. Cisco ISE can also augment endpoint data with information from the MDM server that cannot be gathered using the Cisco ISE profiling services. References:

Integrate XenMobile Mobile Device Management (MDM) with Cisco Identity Services Engine (ISE)

Cisco Identity Services Engine Administrator Guide, Release 2.4 - Mobile Device Manager Interoperability with Cisco ISE

Cisco ISE Integration with Mobile Device Management (MDM)

In order to send web traffic transparently to the Web Security Appliance (WSA), the system administrator can use one of these two methods:

Policy-based routing (PBR) on the network infrastructure: This method allows the administrator to define routing policies based on the source or destination IP address, port number, protocol, or other criteria of the web traffic. The administrator can then apply these policies to the network interfaces or subinterfaces and redirect the matching traffic to the WSA. This method does not require any configuration on the client side and can be applied to any type of web traffic, including HTTPS and FTP. However, this method may require additional network resources and maintenance, as well as coordination with other network administrators.

Web Cache Communication Protocol (WCCP) on the WSA and the network device: This method allows the administrator to configure the WSA and the network device (such as a router, switch, or firewall) to communicate with each other using WCCP, a Cisco proprietary protocol. The network device acts as a WCCP router and redirects the web traffic to the WSA, which acts as a WCCP client. The WSA then processes the traffic and returns it to the network device, which forwards it to the original destination. This method does not require any configuration on the client side and can be applied to HTTP, HTTPS, and native FTP traffic. However, this method requires that the network device supports WCCP and that the WSA and the network device are in the same Layer 2 domain.

Cisco Advanced Malware Protection (AMP) for Web Security is a solution that provides protection against web-related threats before, during, and after an attack. One of the functions that AMP for Web Security includes is detailed analytics of the unknown file’s behavior. This means that AMP can continuously monitor and analyze the activity of files that cross the web gateway, even after they have been initially scanned and allowed. This allows AMP to detect and block any malicious behavior that may emerge later, and provide retrospective security alerts and remediation actions12. References: 1: Cisco Advanced Malware Protection for Web Security 2: Cisco Adds Advanced Malware Protection to Web and Email Security Appliances and Cloud Services

 SNMPv3 is a security model that uses authentication and encryption to provide secure access to devices. SNMPv3 requires the configuration of SNMP groups, users, and views. SNMP groups define the security model, security level, and access rights for a set of users. SNMP users are members of SNMP groups and have passwords for authentication and encryption. SNMP views define the subset of the MIB tree that a group of users can access. To facilitate access to the SNMP views, the network administrator must map the SNMPv3 users to the SNMP views using the snmp-server group command with the v3 and view keywords. This command assigns a view to a group of users and specifies the security model and level for that group. For example, the following command maps the SNMPv3 users in the group admin to the view all using the authPriv security level:

snmp-server group admin v3 authPriv read all write all

This command allows the users in the group admin to access all the MIB objects in the view all using authentication and encryption. The other options are not correct because they are not related to the SNMP views. Option B is incorrect because the password for SNMPv3 authentication is configured for each user using the snmp-server user command with the auth keyword. Option C is incorrect because the encryption algorithm for SNMPv3 is also configured for each user using the snmp-server user command with the priv keyword. Option D is incorrect because the UDP port used by SNMP is not configurable and is always 161 for queries and 162 for traps. References :=

Some possible references for this question are:

SNMP Configuration Guide, Cisco IOS XE Release 3SE (Catalyst 3850 Switches) - SNMP Version 3

Configuration Template for SNMPv3 - Cisco Community

Configure ESXi for SNMP v3 - VMware Docs

How to Configure SNMPv3 and How It Works - CBT Nuggets
