The Splunk Common Information Model (CIM) is a collection of data models that apply a common structure and naming convention to data from any source. A data model is a type of knowledge object that defines the structure and relationships of fields in a dataset. A data model can have one or more datasets, which are subsets of the data model that represent different aspects of the data. For example, the Network Traffic data model has datasets such as All Traffic, DNS, HTTP, etc. The CIM contains 28 pre-configured data models that cover various domains such as authentication, network traffic, web, email, etc. The CIM is implemented as an add-on that contains the JSON files for the data models, documentation, and tools that support the consistent, normalized treatment of data for maximum efficiency at search time23

1: Splunk Core Certified Power User Track, page 10. 2: Splunk Documentation, Overview of the Splunk Common Information Model 1. 3: Splunkbase, Splunk Common Information Model (CIM) 2.

In Splunk, Pivot is a tool that allows you to report on a specific data set without using the Splunk Search Processing Language (SPL™)1. You can use a drag-and-drop interface to design and generate pivots that present different aspects of your data in the form of tables, charts, and other visualizations12.

One of the features of Pivot is that it allows you to save your reports1. This can be useful when you want to reuse a report or share it with others1. Therefore, it’s not true that users cannot share visualizations created with Pivot or that they must use SPL to find events in a Pivot12. It’s also not true that users cannot create visualizations with Pivot, as creating visualizations is one of the main functions of Pivot12.

The where command can be used to complete the search below.

… | where failure>successes

The where command is a search command that allows you to filter events based on complex or custom criteria. The where command can use any boolean expression or function to evaluate each event and determine whether to keep it or discard it. The where command can also compare fields or perform calculations on fields using operators such as >, <, =, +, -, etc. The where command can be used after any transforming command that creates a table or a chart.

The search string below does the following:

It uses … to represent any search criteria or commands before the where command.

It uses the where command to filter events based on a comparison between two fields: failure and successes.

It uses the greater than operator (>) to compare the values of failure and successes fields for each event.

It only keeps events where failure is greater than successes.

The correct answer is D.

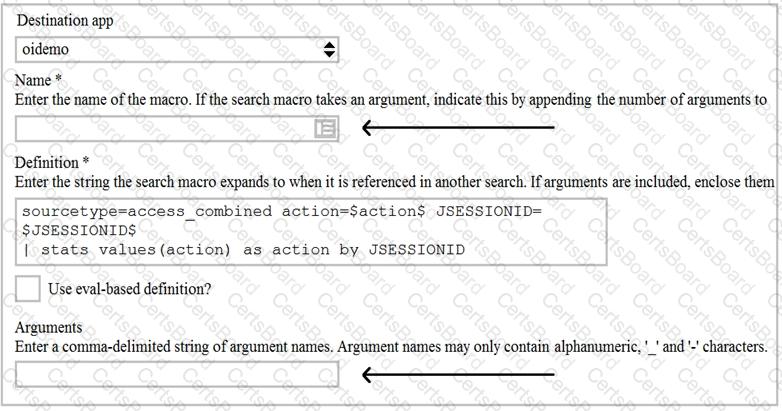

A search macro is a way to reuse a piece of SPL code in different searches. A search macro can take arguments, which are variables that can be replaced by different values when the macro is called. A search macro can also contain another search macro within it, which is called a nested macro1.

To represent an argument in a macro definition, you need to use the dollar sign ($) character to enclose the argument name. For example, if you want to create a search macro that takes one argument named “object”, you can use the following syntax:

[my_macro(object)] search sourcetype= object

This will create a search macro named my_macro that takes one argument named object. When you call the macro in a search, you need to provide a value for the object argument, such as:

my_macro(web)

This will replace the object argument with the value web and run the following SPL code:

search sourcetype=web

The other options are not correct because they use quotation marks (’ or ") or percentage signs (%) to represent arguments, which are not valid syntax for macro arguments. These characters will be interpreted as literal values instead of variables.

The correct answer is B. Pivot1.

In Splunk, Pivot is a tool that uses data models to generate reports and dashboard panels without the need for users to write or understand Splunk’s Search Processing Language (SPL)1. Data models enable users of Pivot to create compelling reports and dashboards1. When a Pivot user designs a pivot report, they select the data model that represents the category of event data that they want to work with1. Then they select a dataset within that data model that represents the specific dataset on which they want to report1. This makes Pivot a powerful tool for users who need to create visualizations but do not have a deep understanding of SPL1.

In this case, the outer join is applied, which means that all rows from the outer (left) table will be included, even if there are no matching rows in the inner (right) table. The result will include all five rows from the outer table, with the matched data from the inner table where employeeNumber matches. Rows without matching employeeNumber values will have null values for the fields from the inner table.

Tags can be searched with tag= and Boolean operators.

Extract: “Use tag= to search for events with that tag. Use Boolean operators such as NOT to exclude tags.”

Therefore, tag=Marketing NOT (tag=San_Francisco) correctly filters Marketing-tagged employees excluding those tagged San_Francisco.

In Splunk, the transaction command is used to group events that share common characteristics into a single transaction1. By default, the transaction command groups all matching events into a single transaction1.

However, you can use the maxspan option to limit the time span of the transactions1. If the time span between the first and last event in a transaction exceeds the maxspan value, the transaction command will start a new transaction1.

Therefore, if the maxspan option is not included in the search, the transaction command might produce multiple transactions instead of one if the time span between the first and last event in a transaction exceeds the default maxspan value1.

Here is an example of how you can use the maxspan option in a search:

index=main sourcetype=access_combined | transaction someuniqefield maxspan=1h

In this search, the transaction command groups events that share the same someuniqefield value into a single transaction, but only if the time span between the first and last event in the transaction does not exceed 1 hour1. If the time span exceeds 1 hour, the transaction command will start a new transaction1.
